Roadways

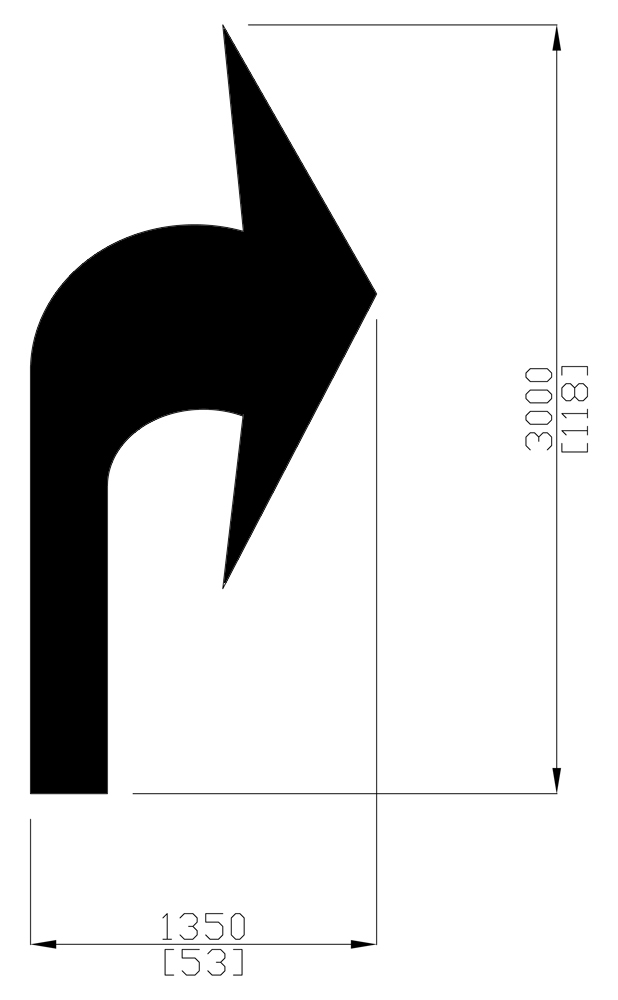

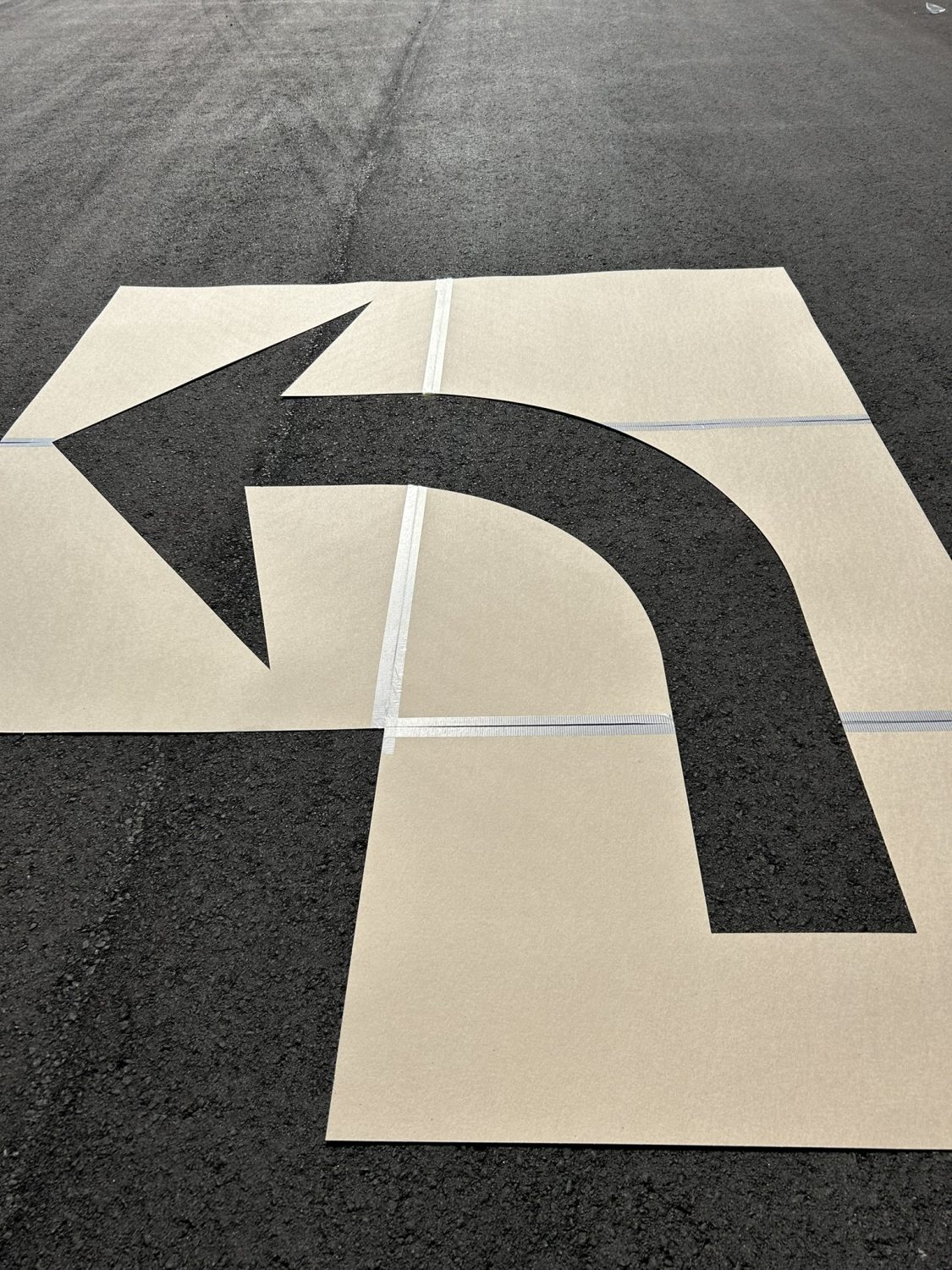

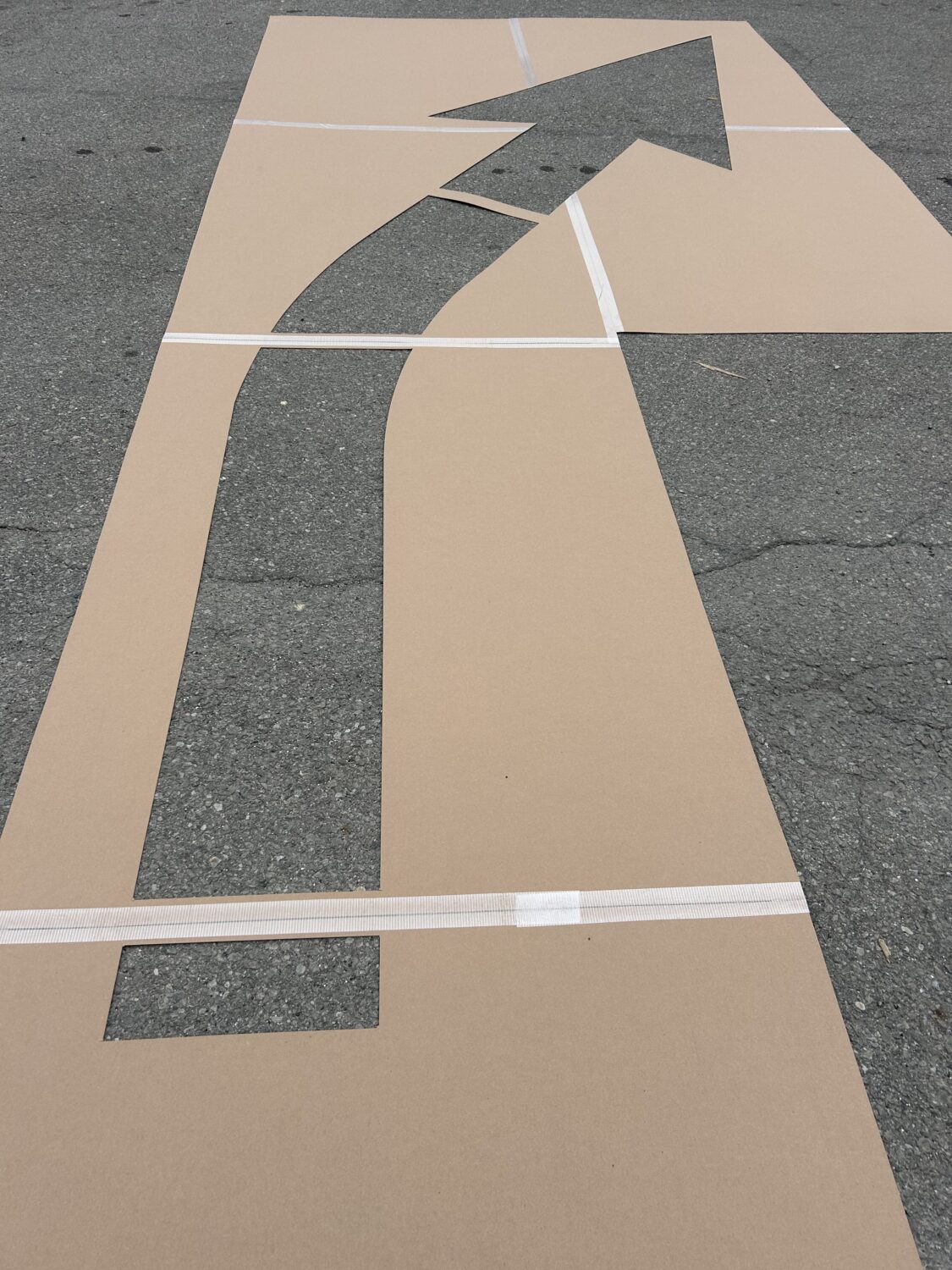

Canadian Turn Arrow – Turn 10
Measurements:
3000mm x 1350mm

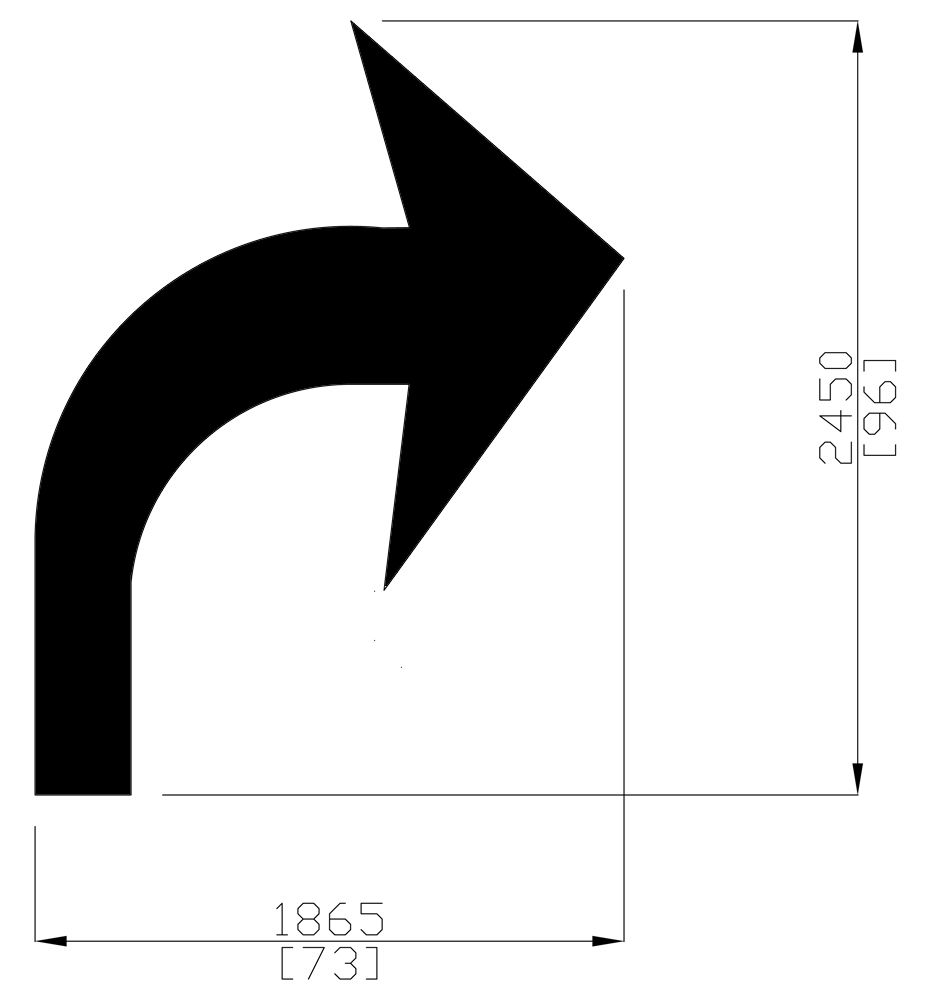

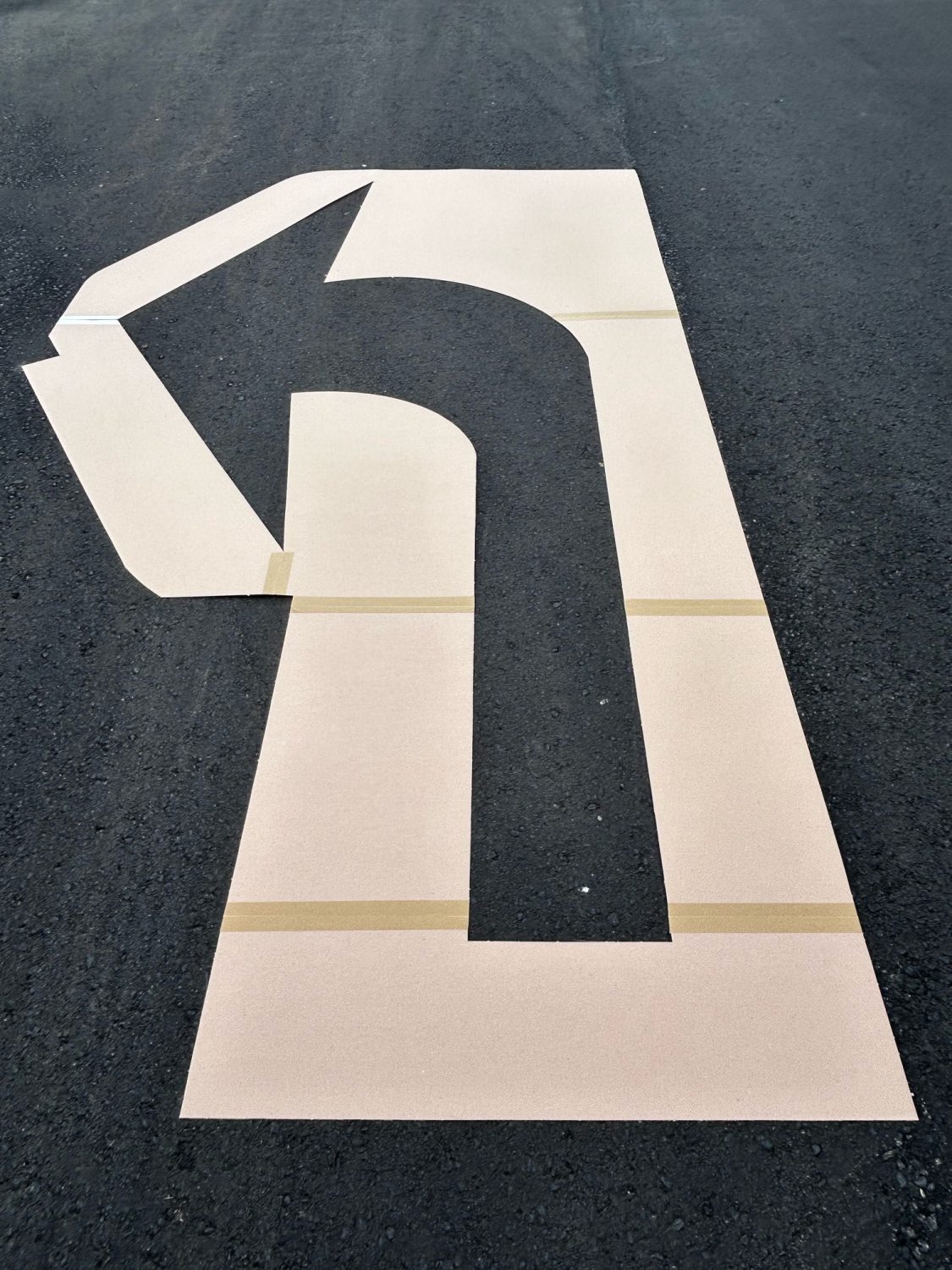

US Turn Arrow – Turn 20
Measurements:
96" x 73"

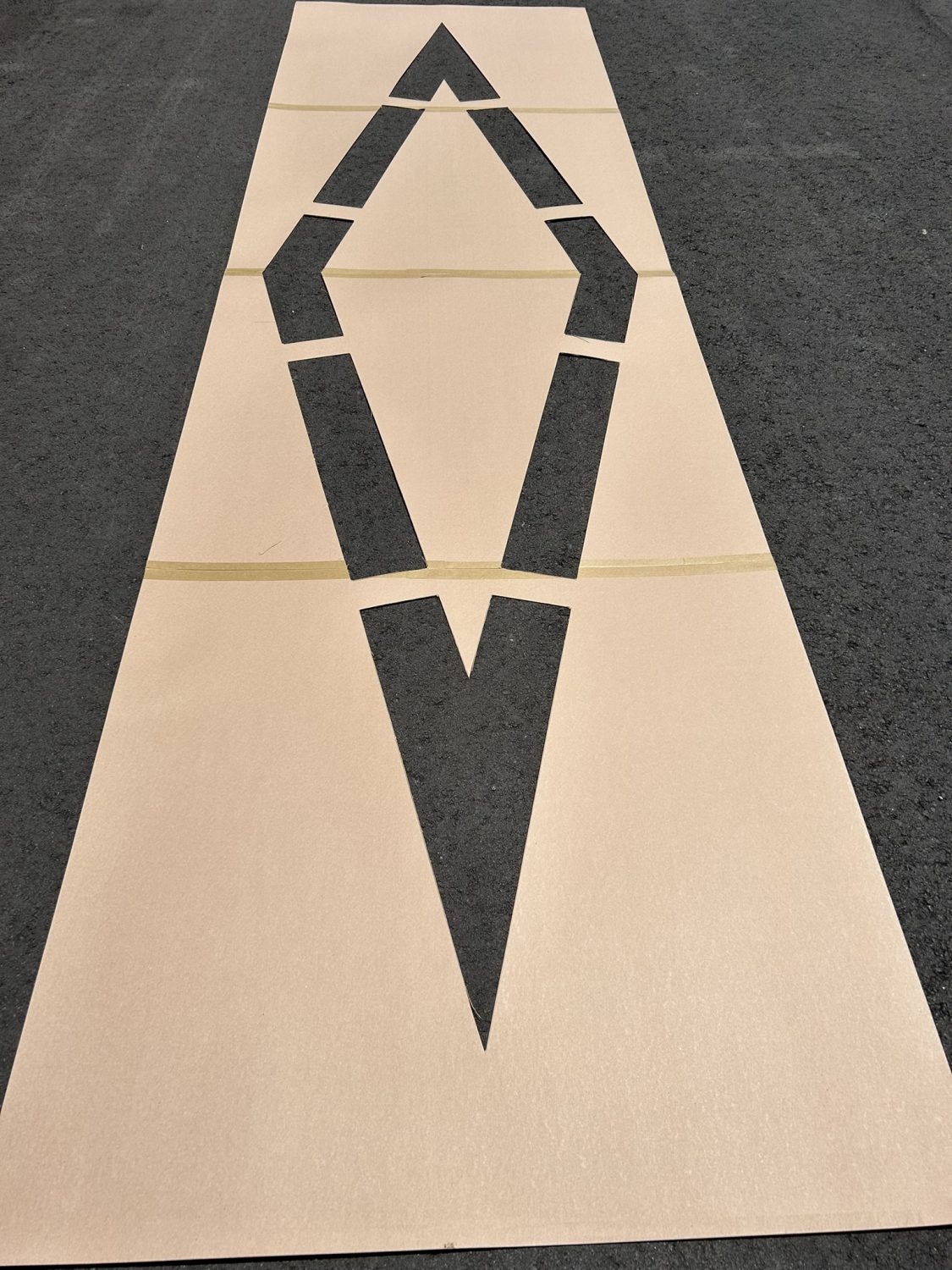

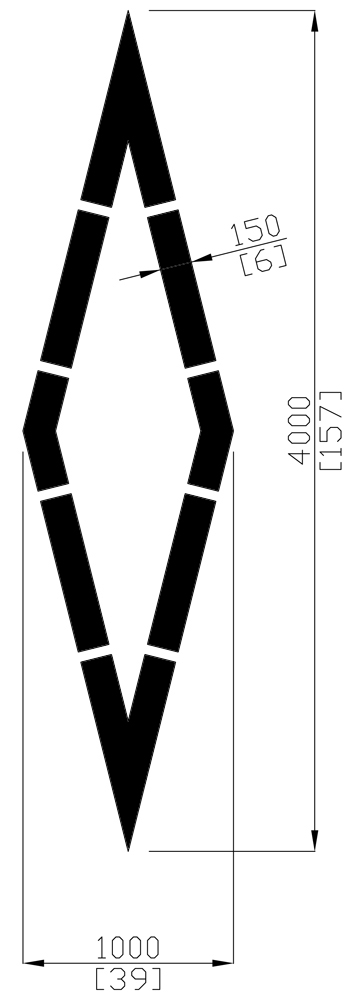

HOV Diamond – HOV15
Measurements:
157 "x 40" x 6" stroke
4000mm x 1000mm x 150mm Stroke

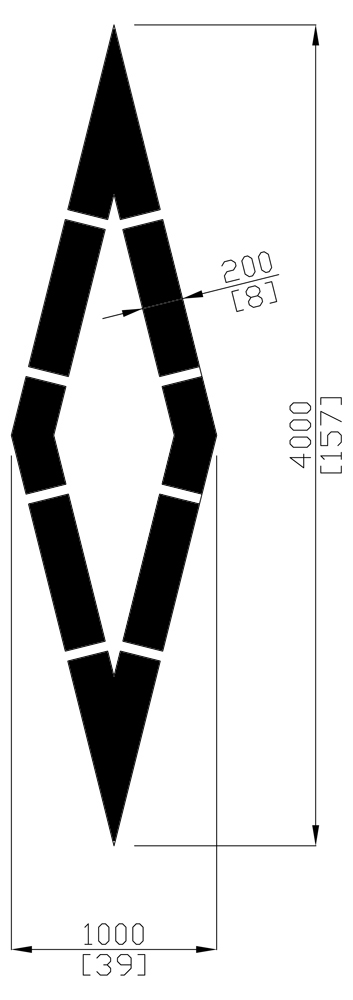

HOV Diamond – HOV20
Measurements:
157" x 40" x 8" stroke
4000mm x 1000mm x 200mm Stroke

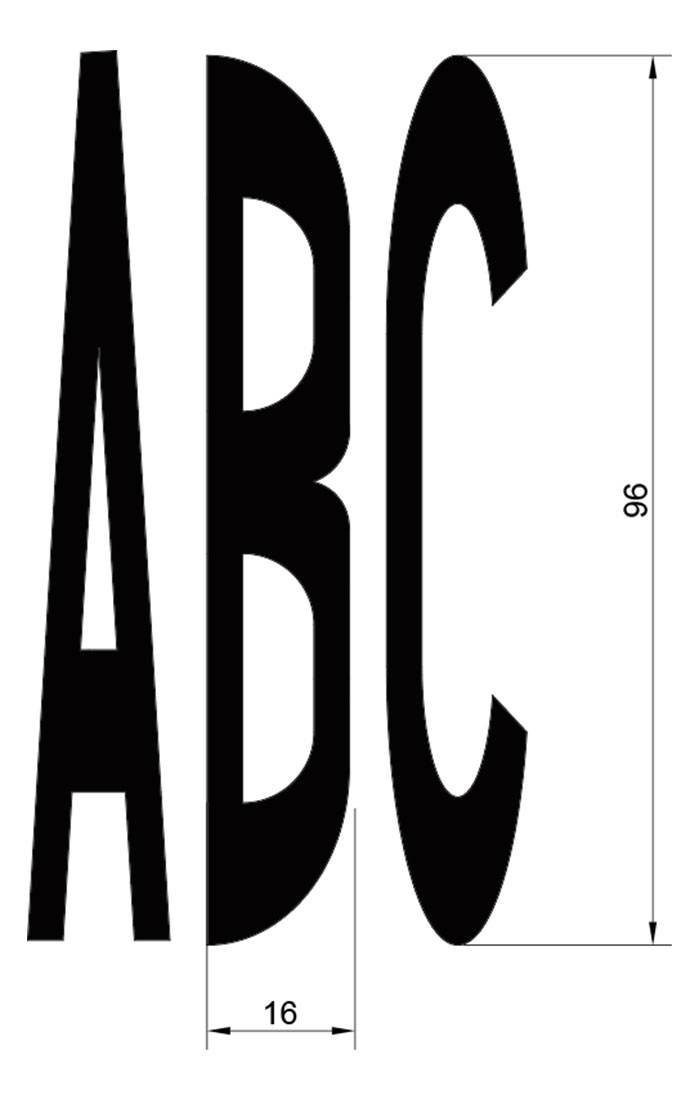

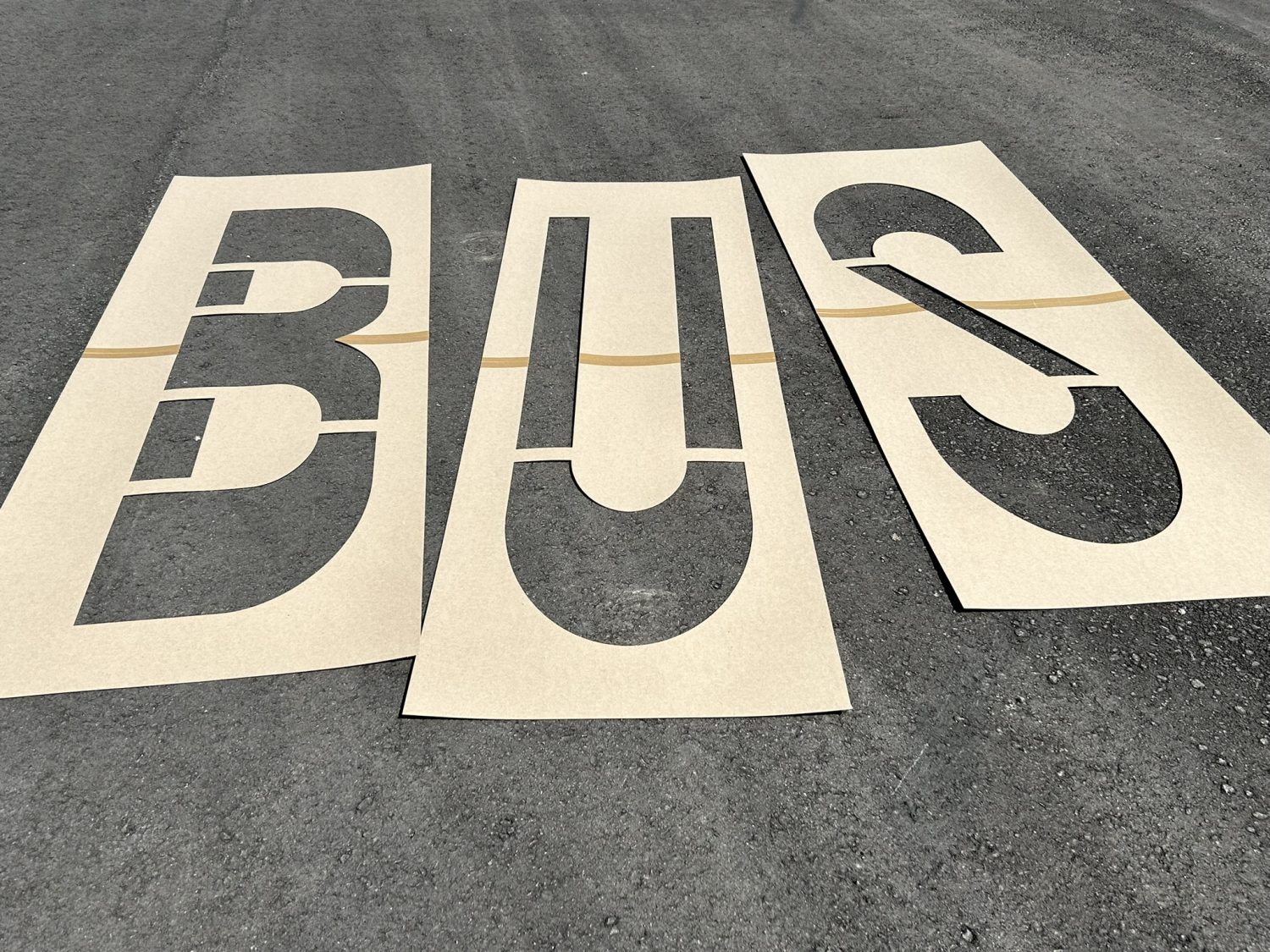

US Letters – L8
Measurements:
96" X 16”, 4” spacing

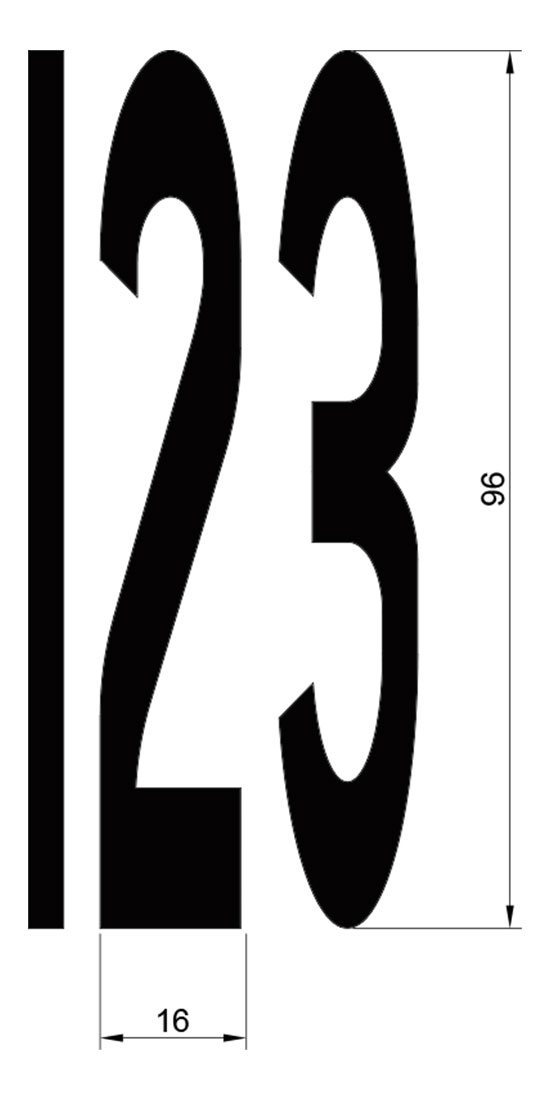

US Numbers – N8
Measurements:
96” X 16”, 4” spacing

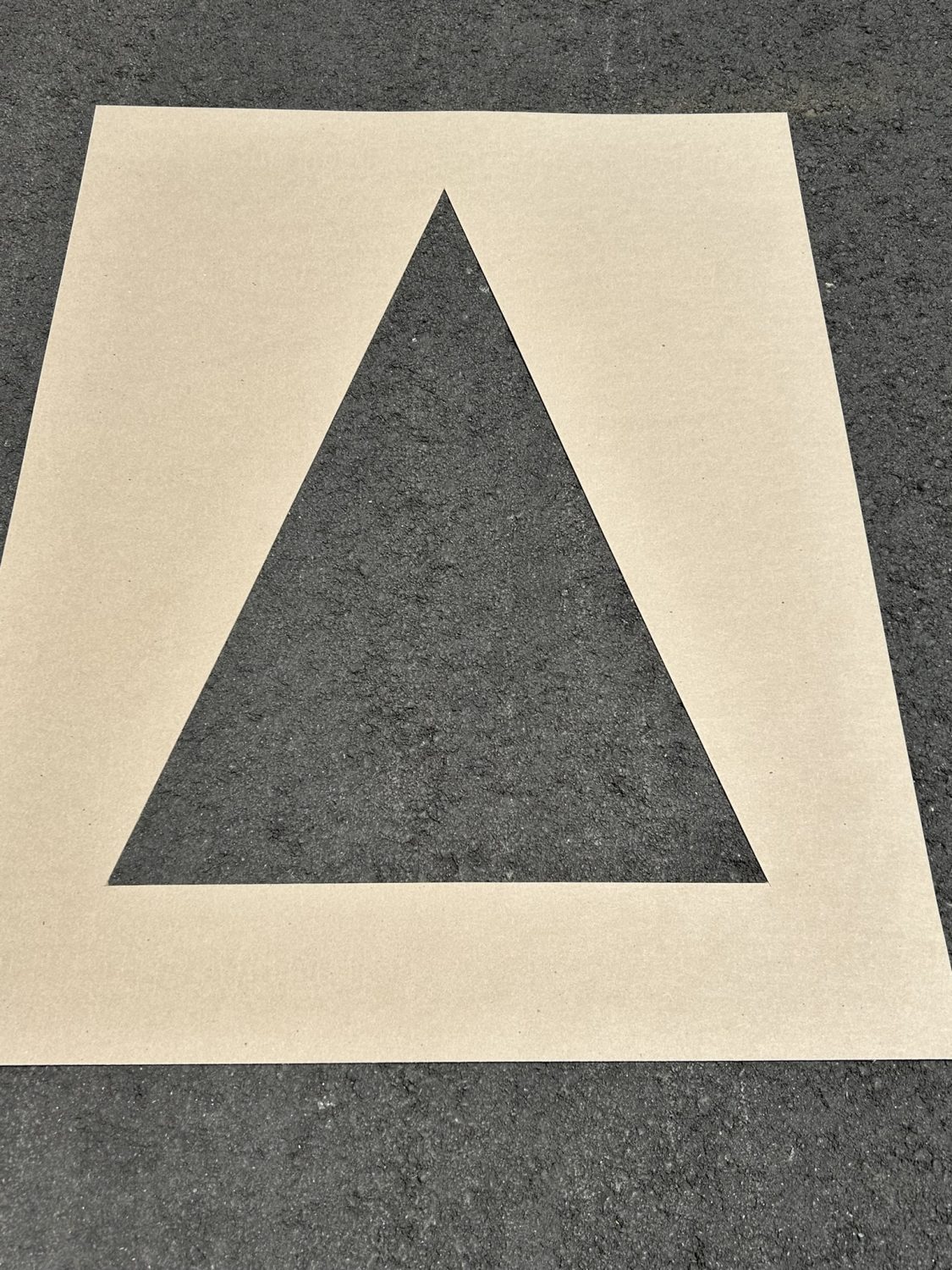

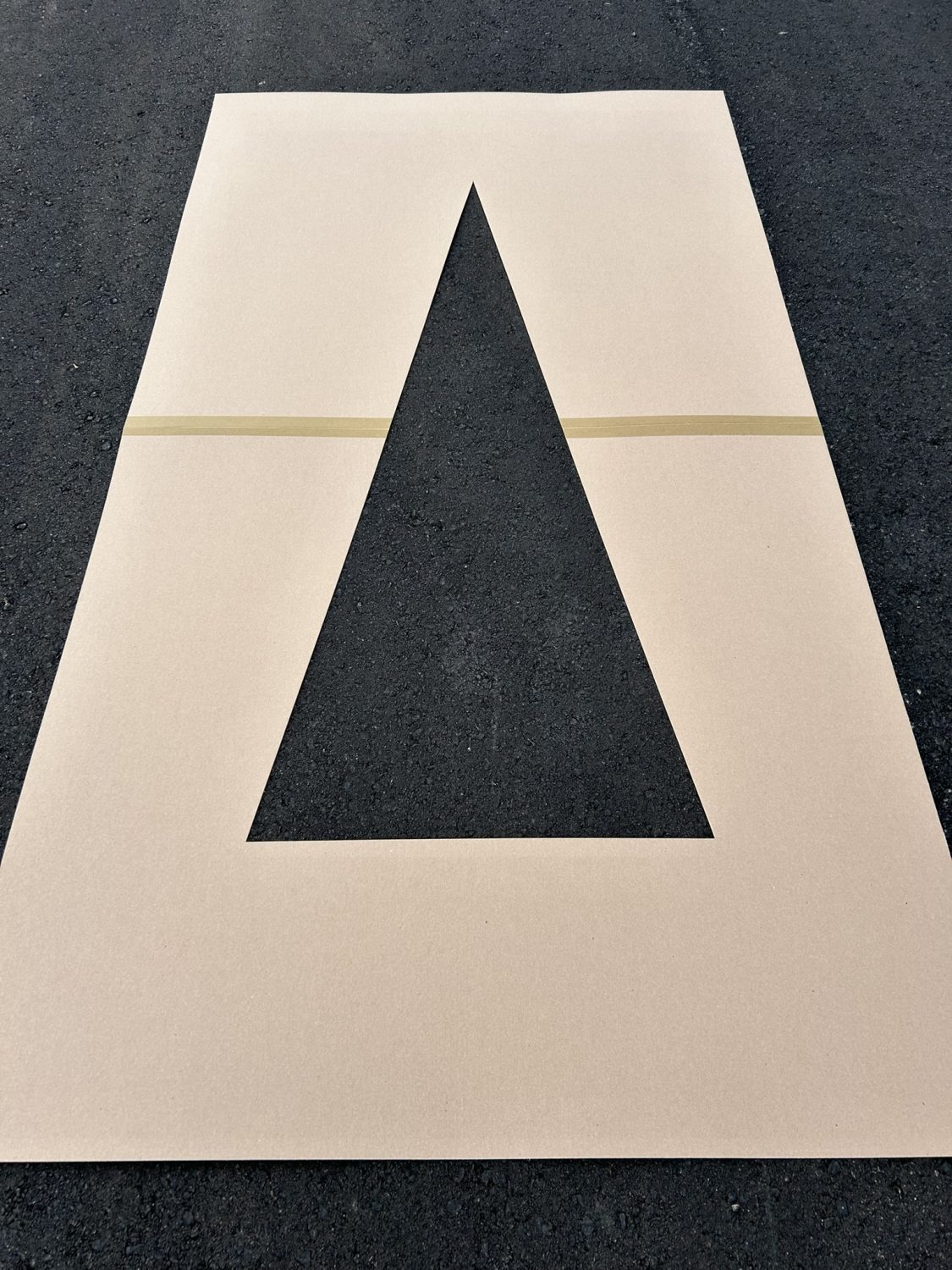

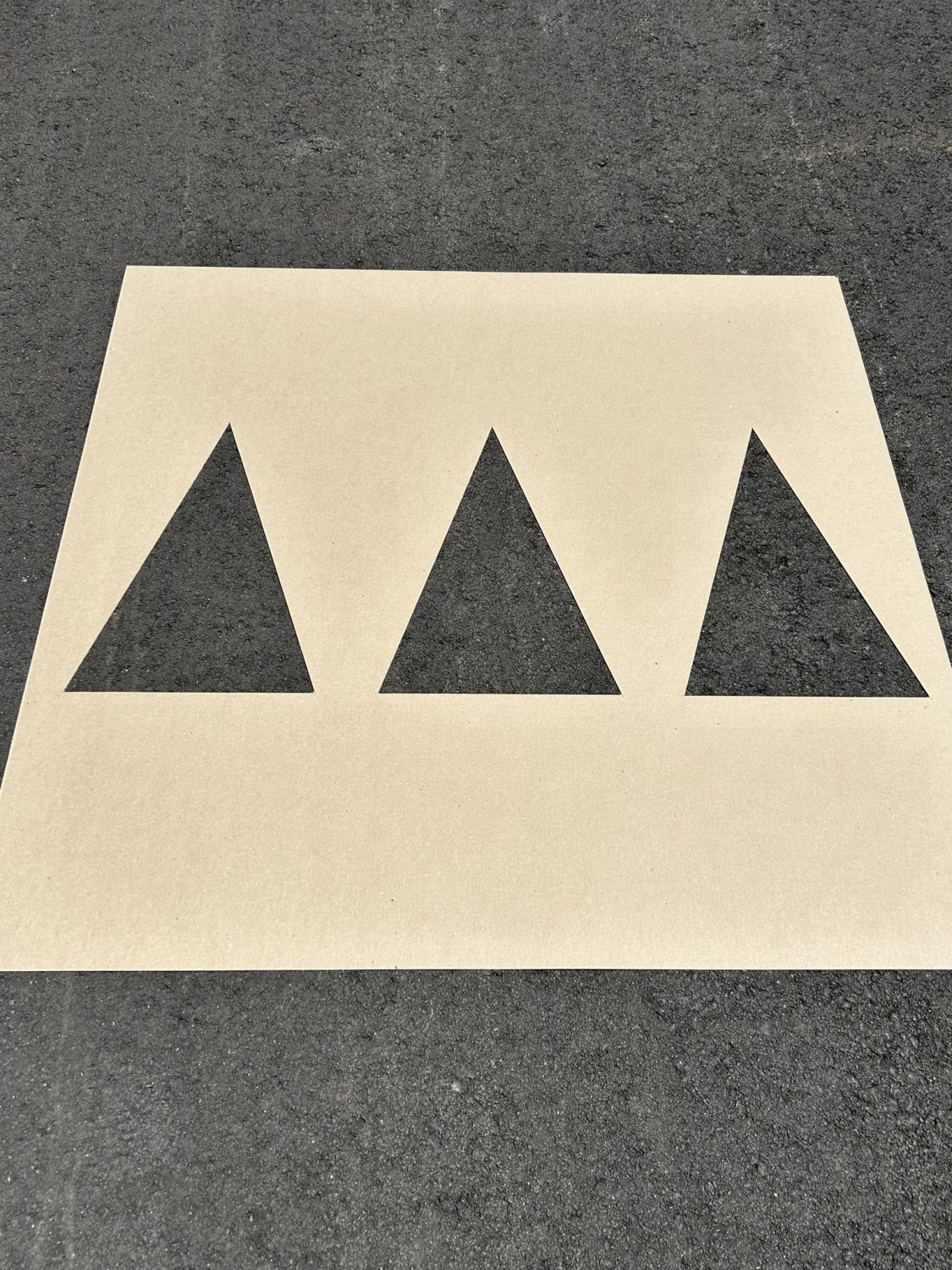

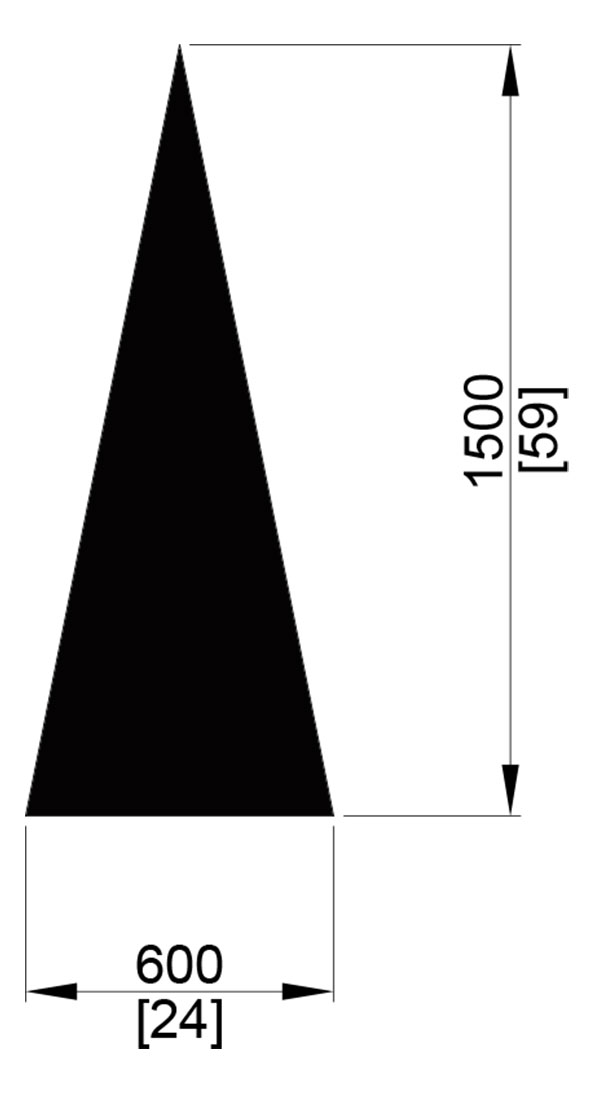

Shark Teeth – Shark 10
Measurements:
900 mm X 600 mm
35” X 24”

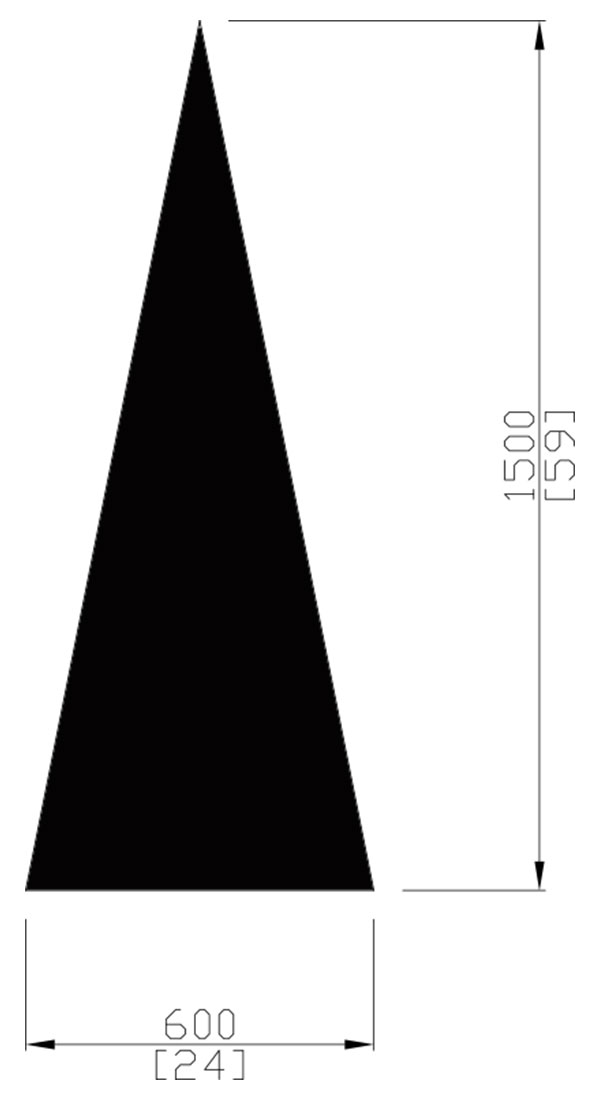

Speed Hump Cushion – Speed 10
Measurements:
1500 mm X 600 mm
59” X 24”

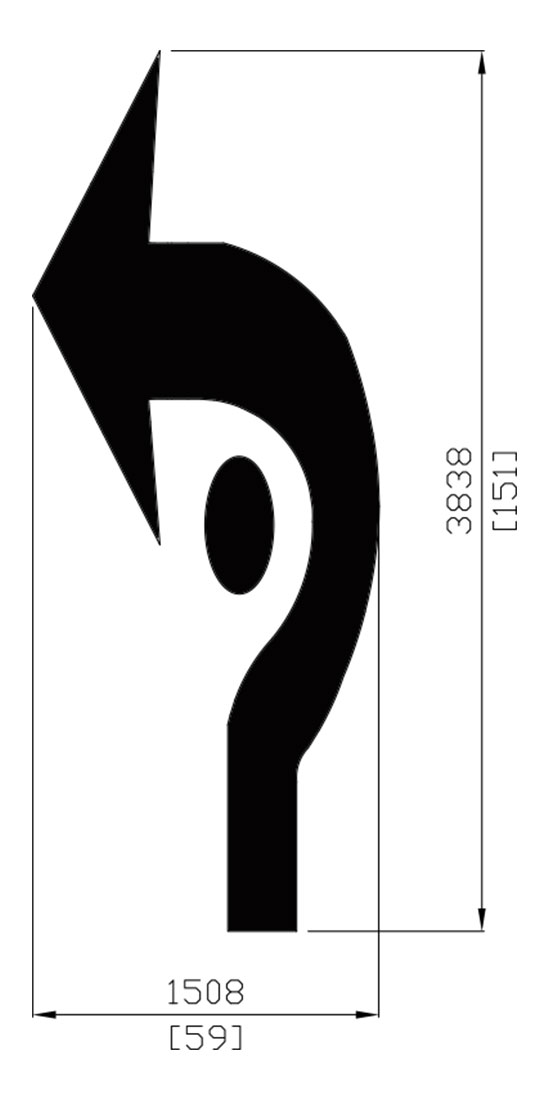

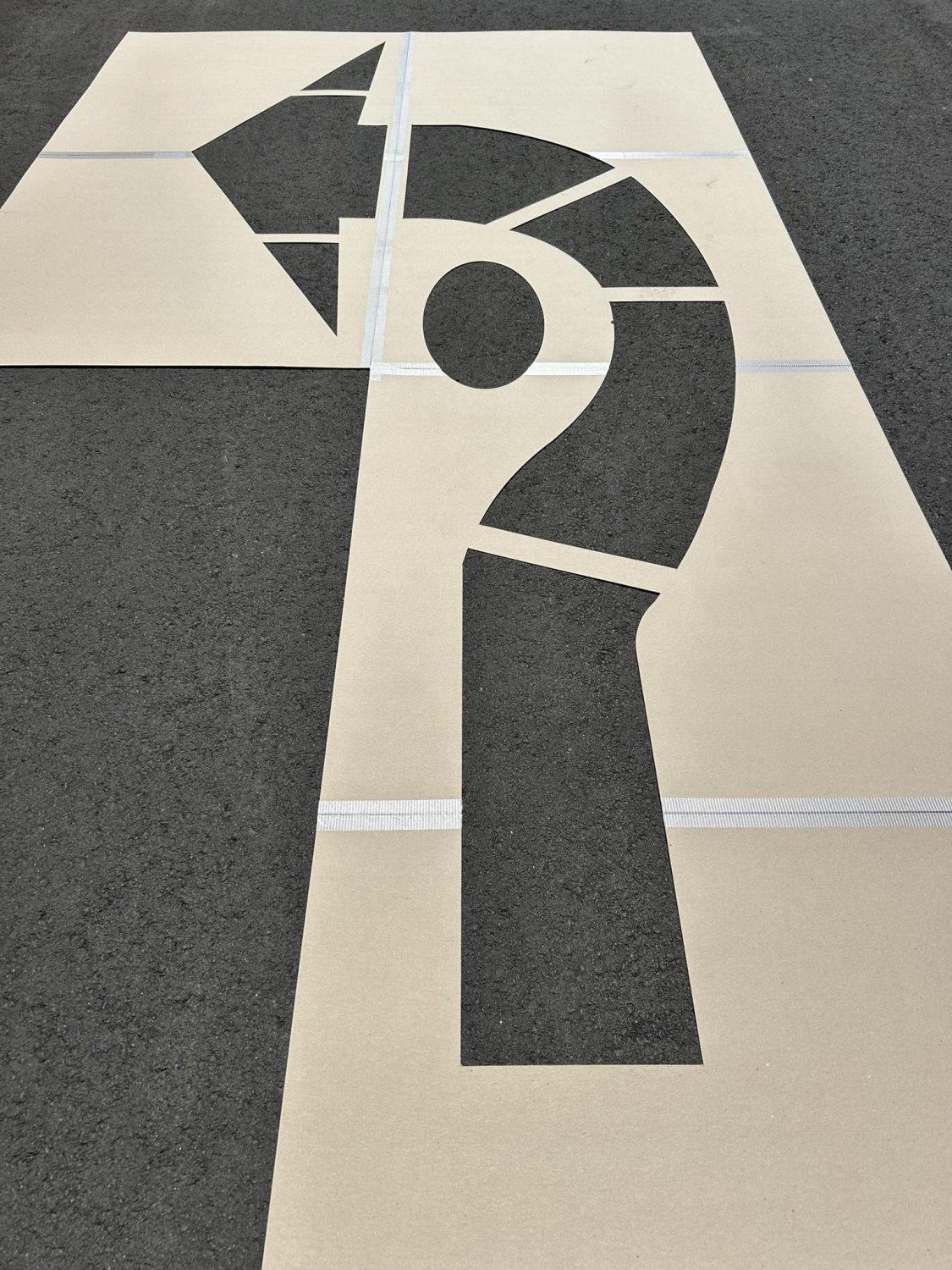

Roundabout Left – Round 10L
Measurements:
3000 mm X 1500 mm
150” X 59”

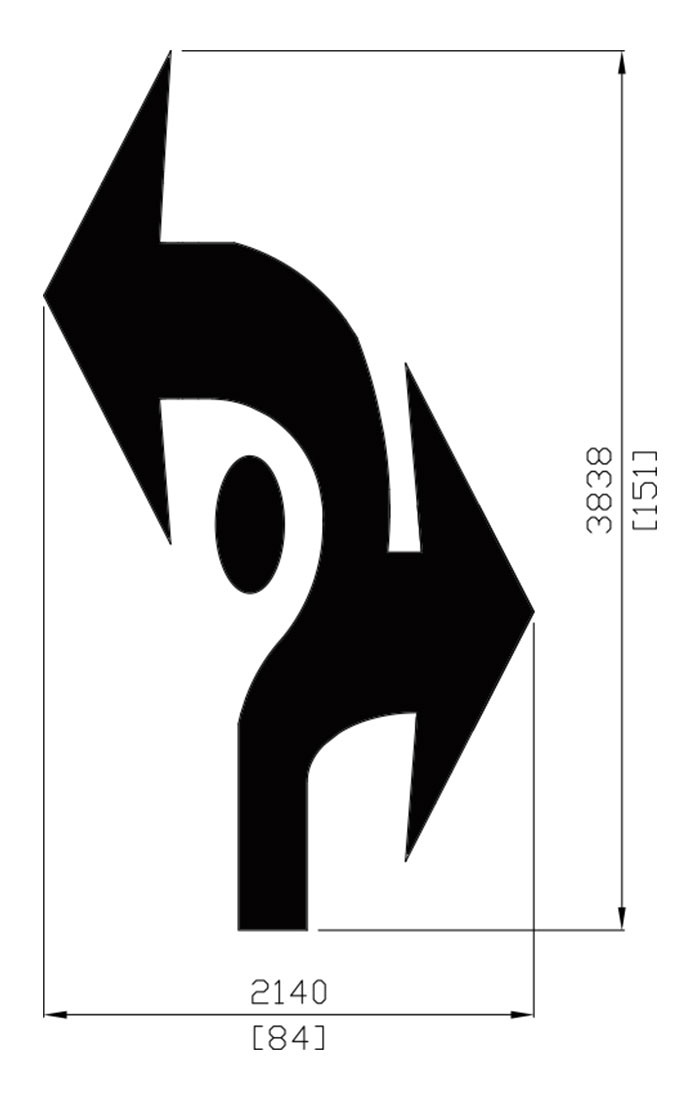

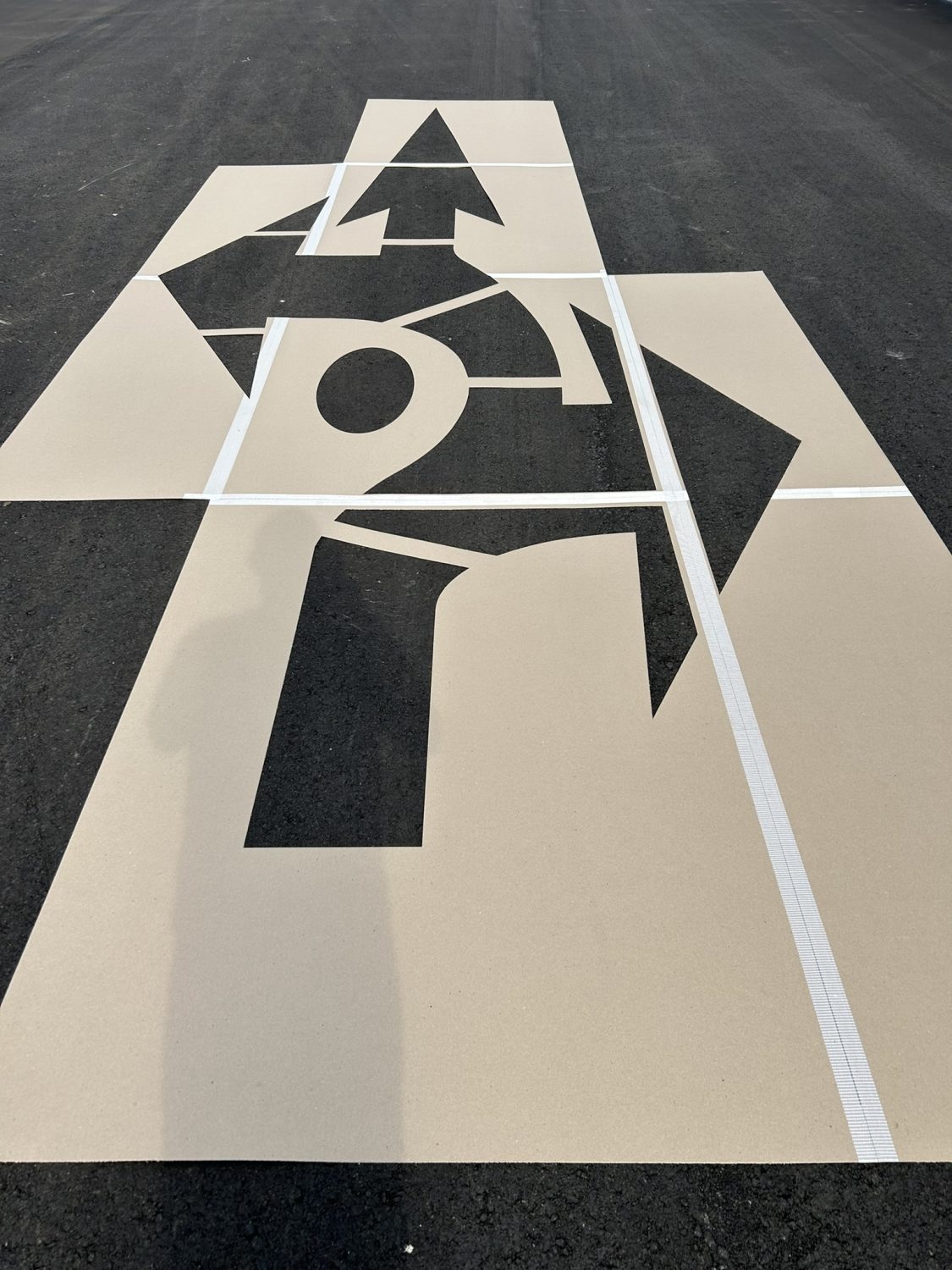

Roundabout Left Right – Round 10LR
Measurements:
3800 mm X 2140 mm
151” X 84”

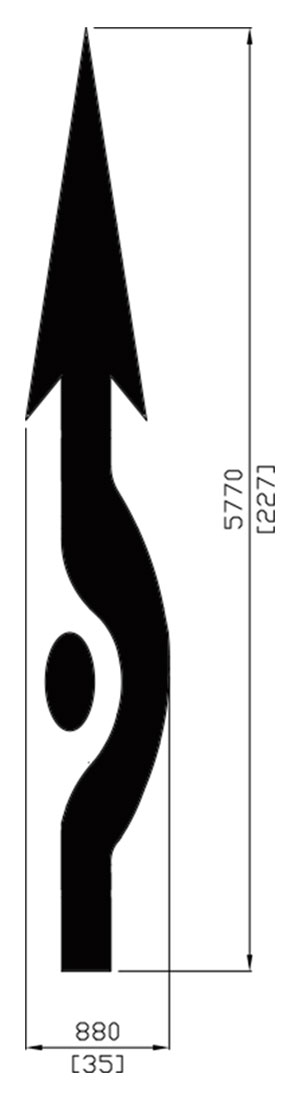

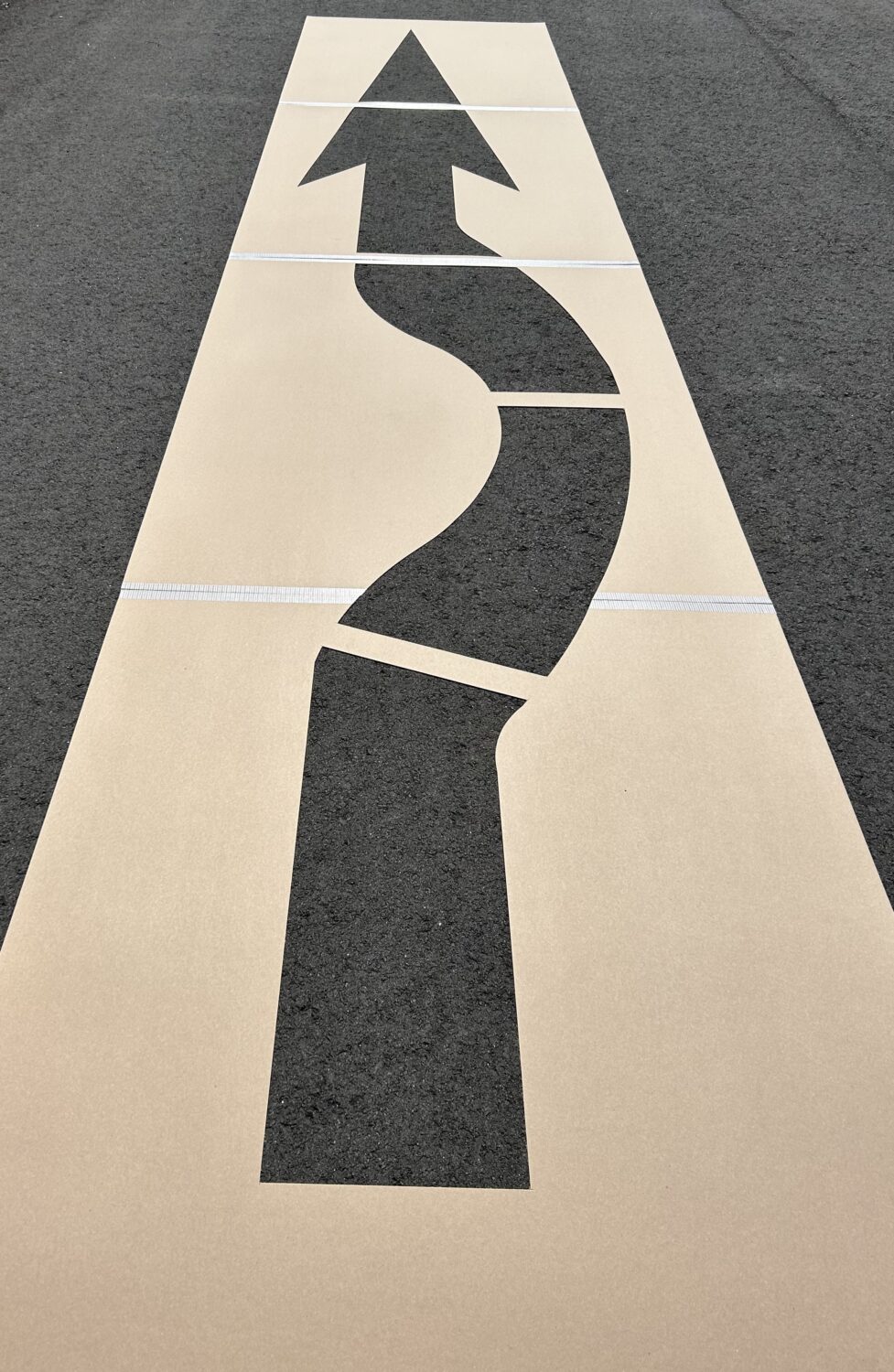

Roundabout Straight – Round 10S
Measurements:
5770 mm X 880 mm
227” X 35”

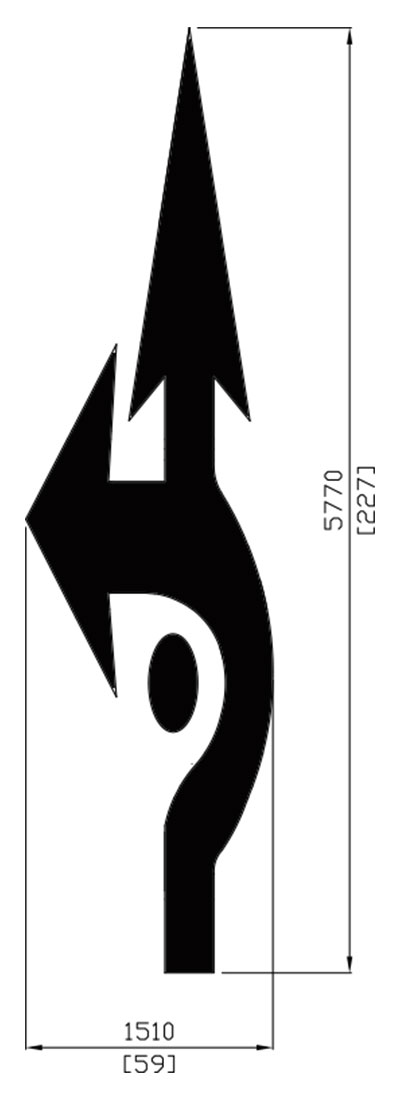

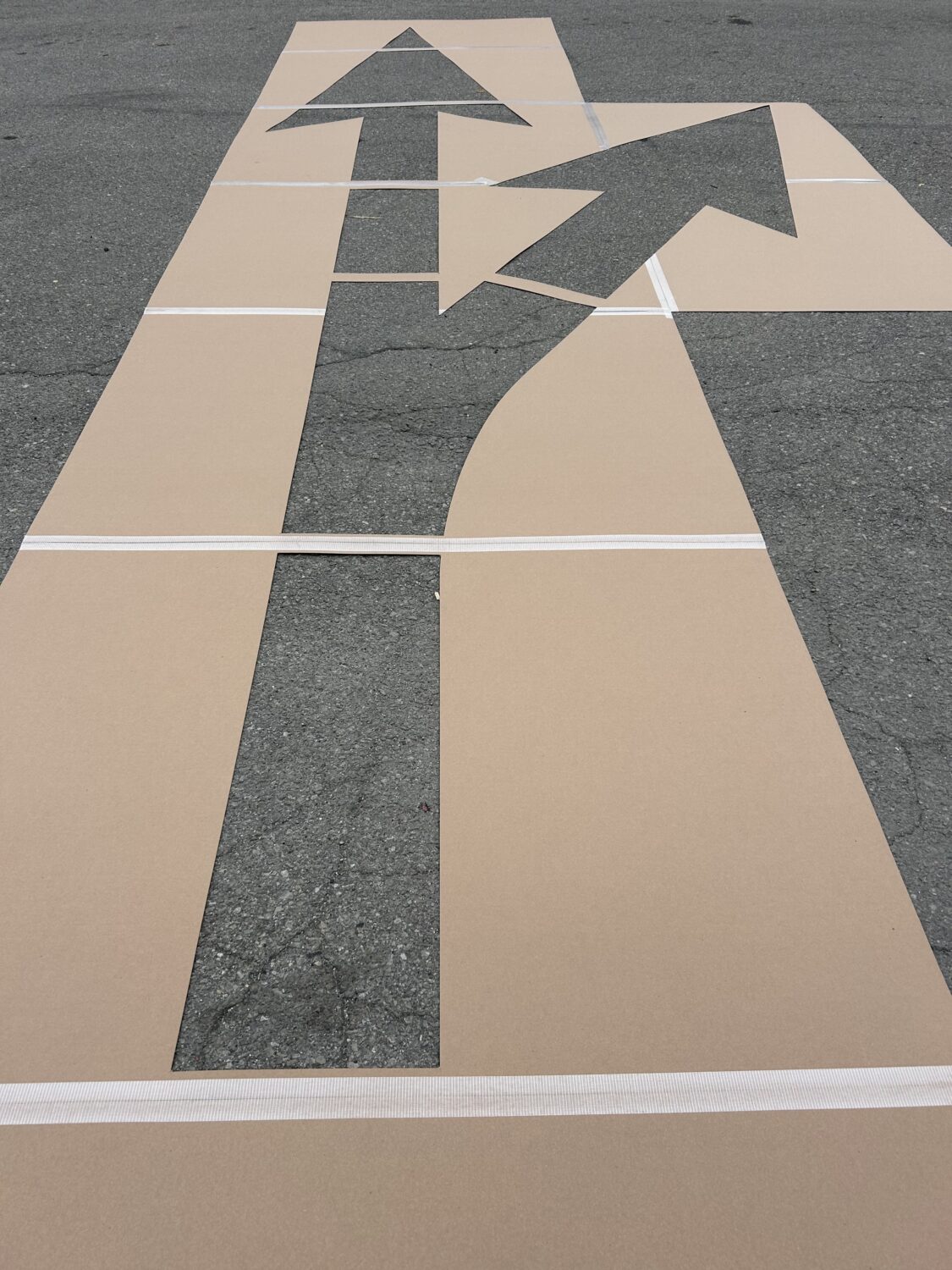

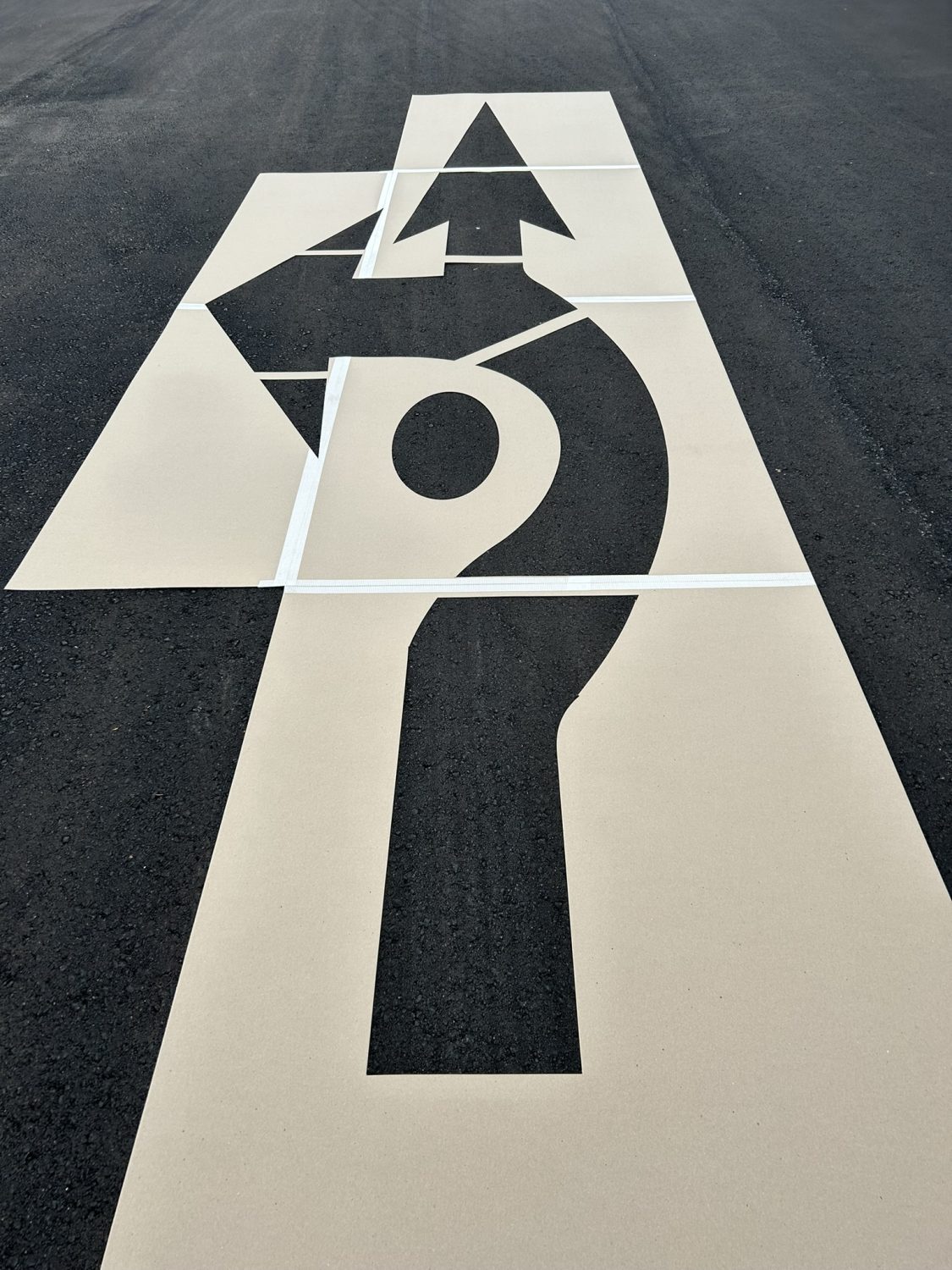

Roundabout Straight Left – Round 10SL
Measurements:
5770 mm X 1500 mm
227” X 59”

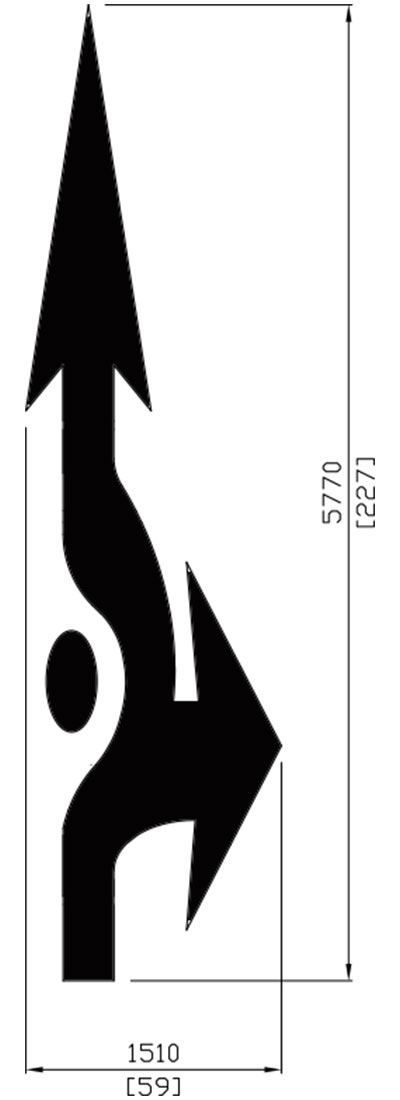

Roundabout Straight Right – Round 10SR
Measurements:
5770 mm X 1500 mm
227” X 59”

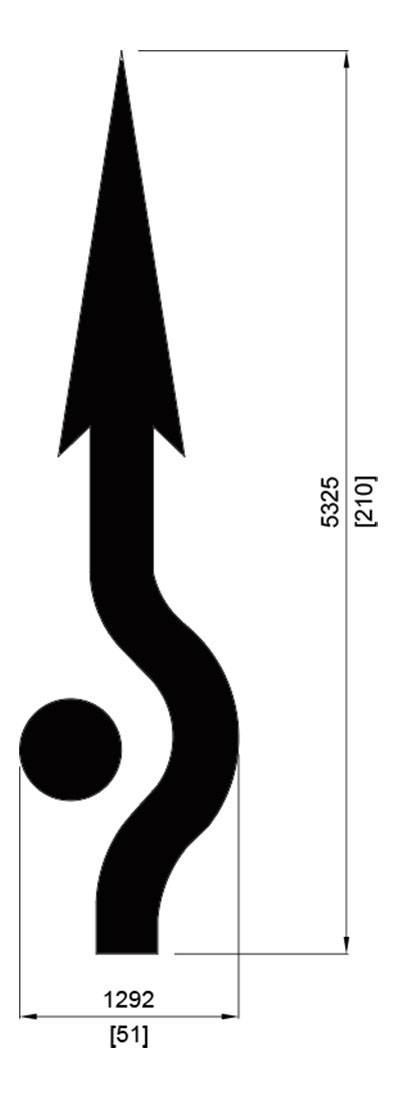

Roundabout Straight – Round 20S
Measurements:
5300 mm X 1300 mm
210” X 51”

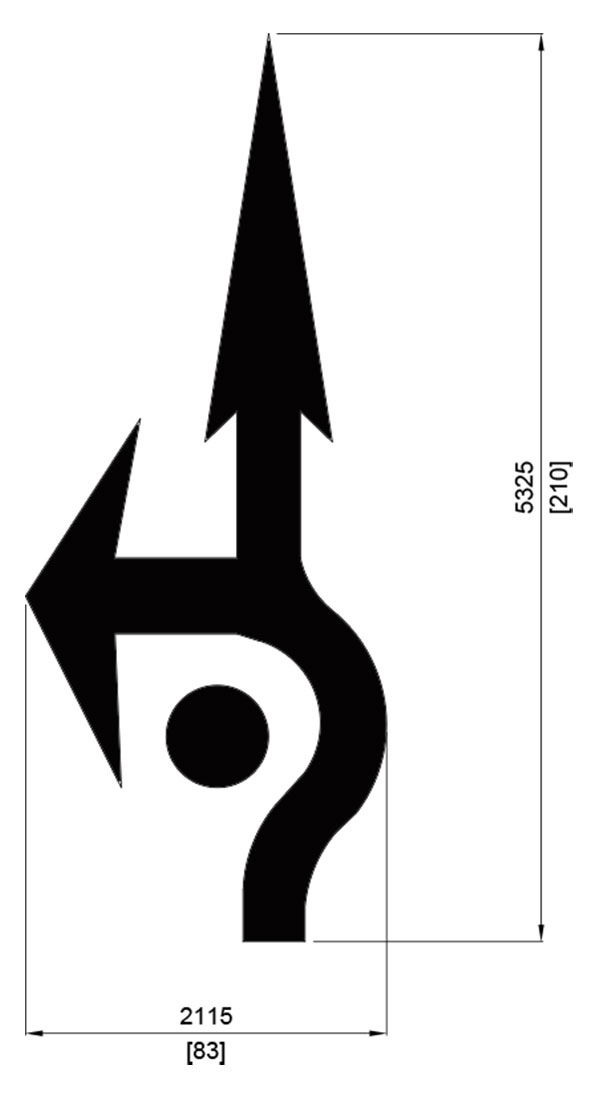

Roundabout Straight Left – Round 20SL
Measurements:
5300 mm X 2100 mm
210” X 83”

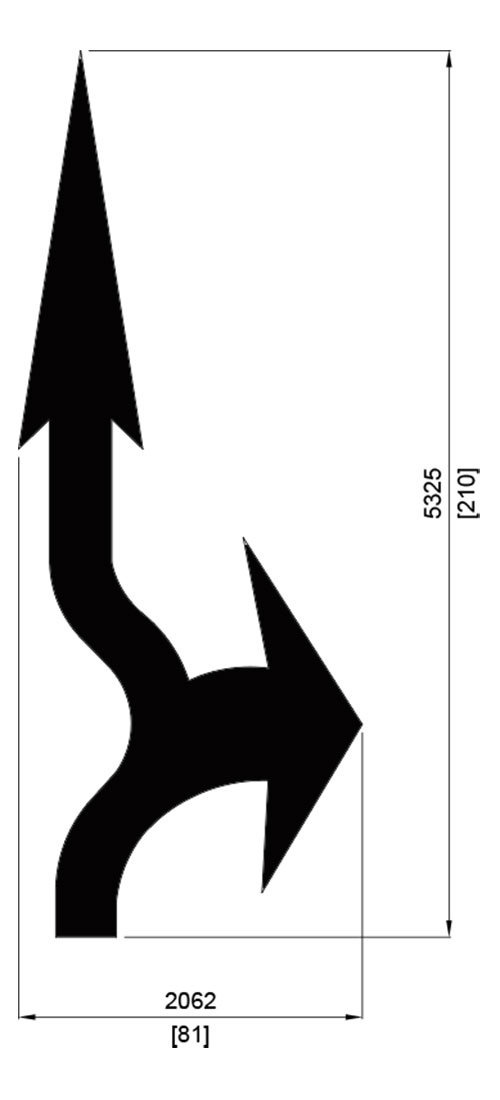

Roundabout Straight Right – Round 20SR
Measurements:
5300 mm X 2000 mm
210” X 81”

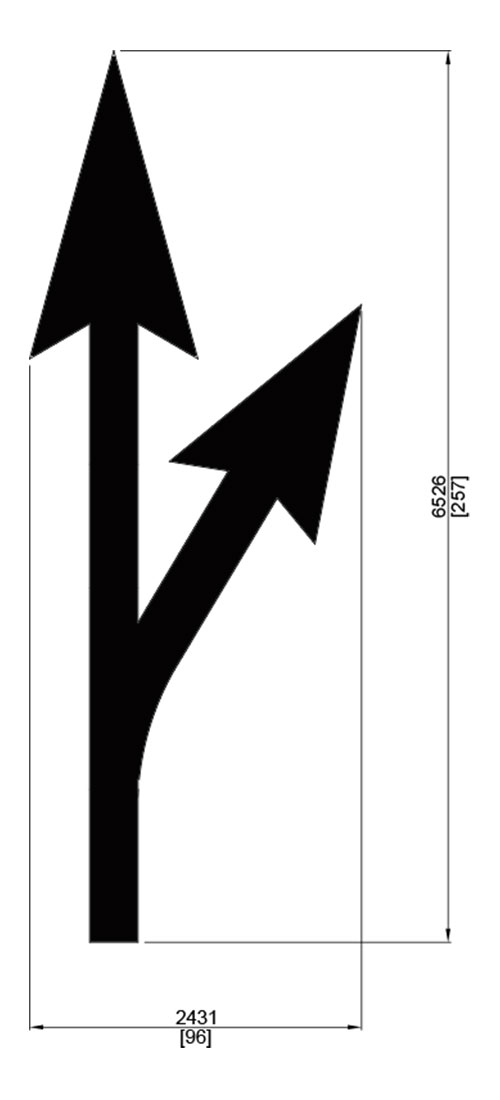

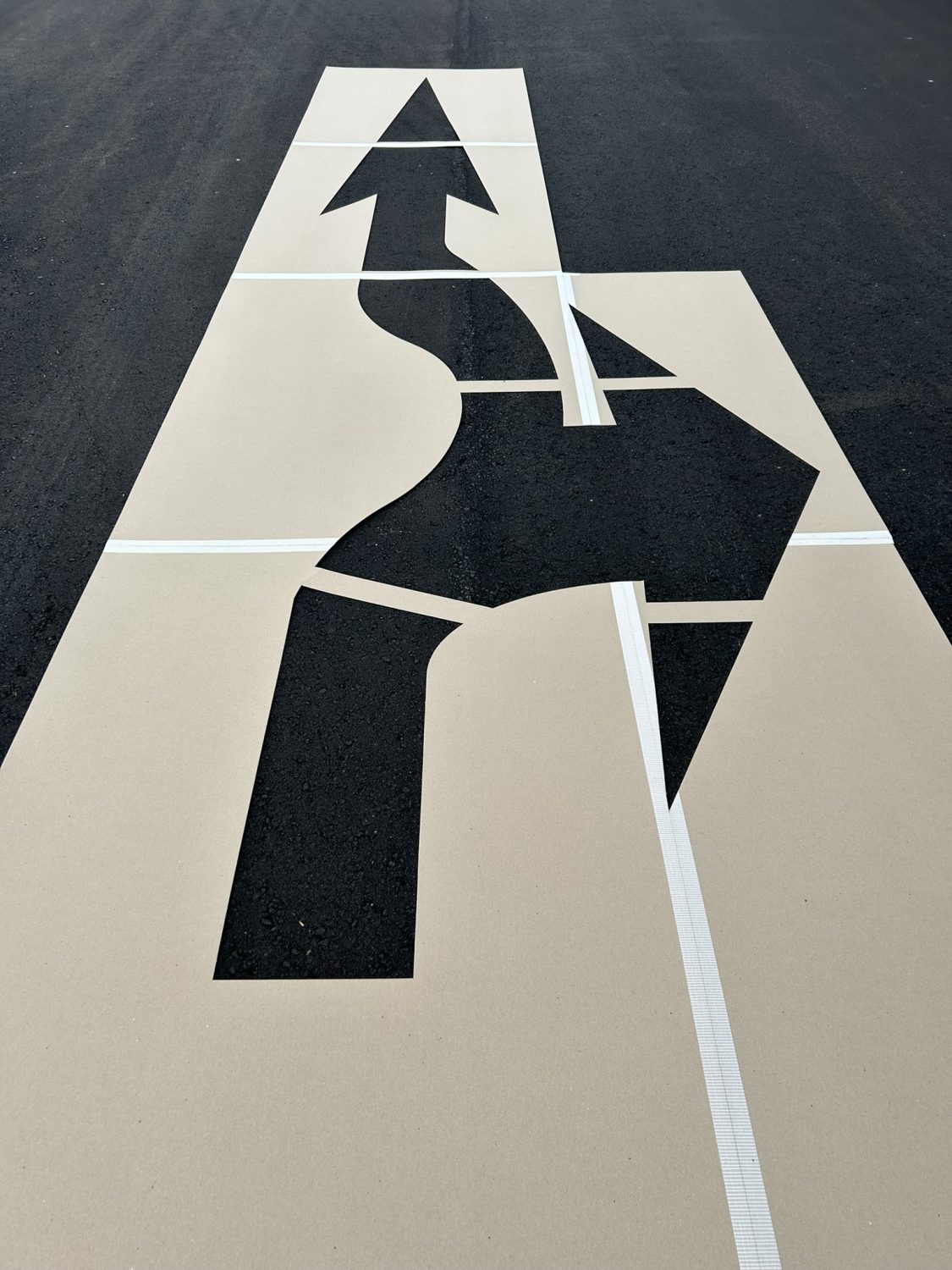

Freeway Exit Straight Right – BFA 30SR
Measurements:
6500 mm X 2400 mm
257” X 96”

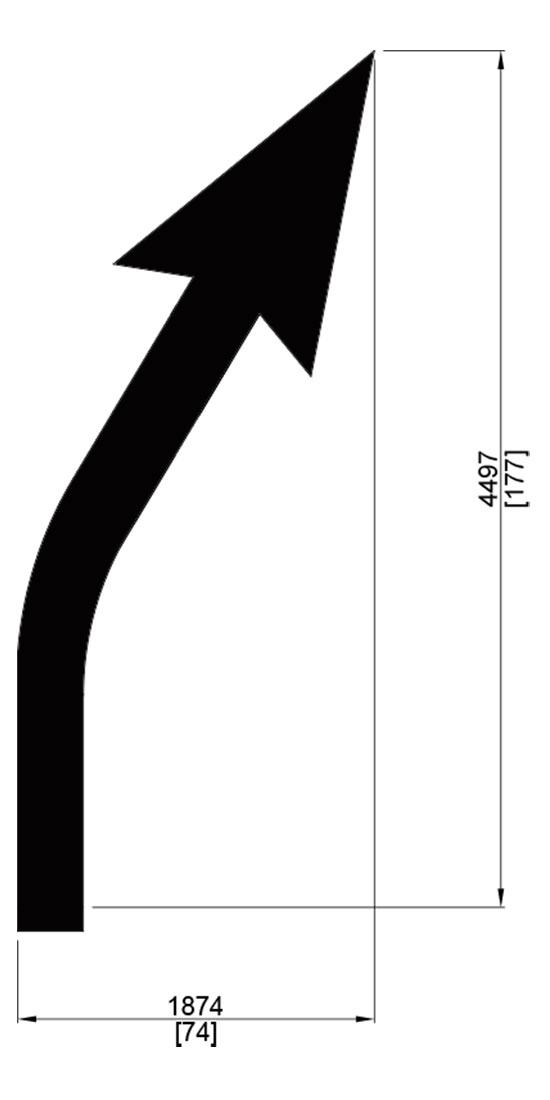

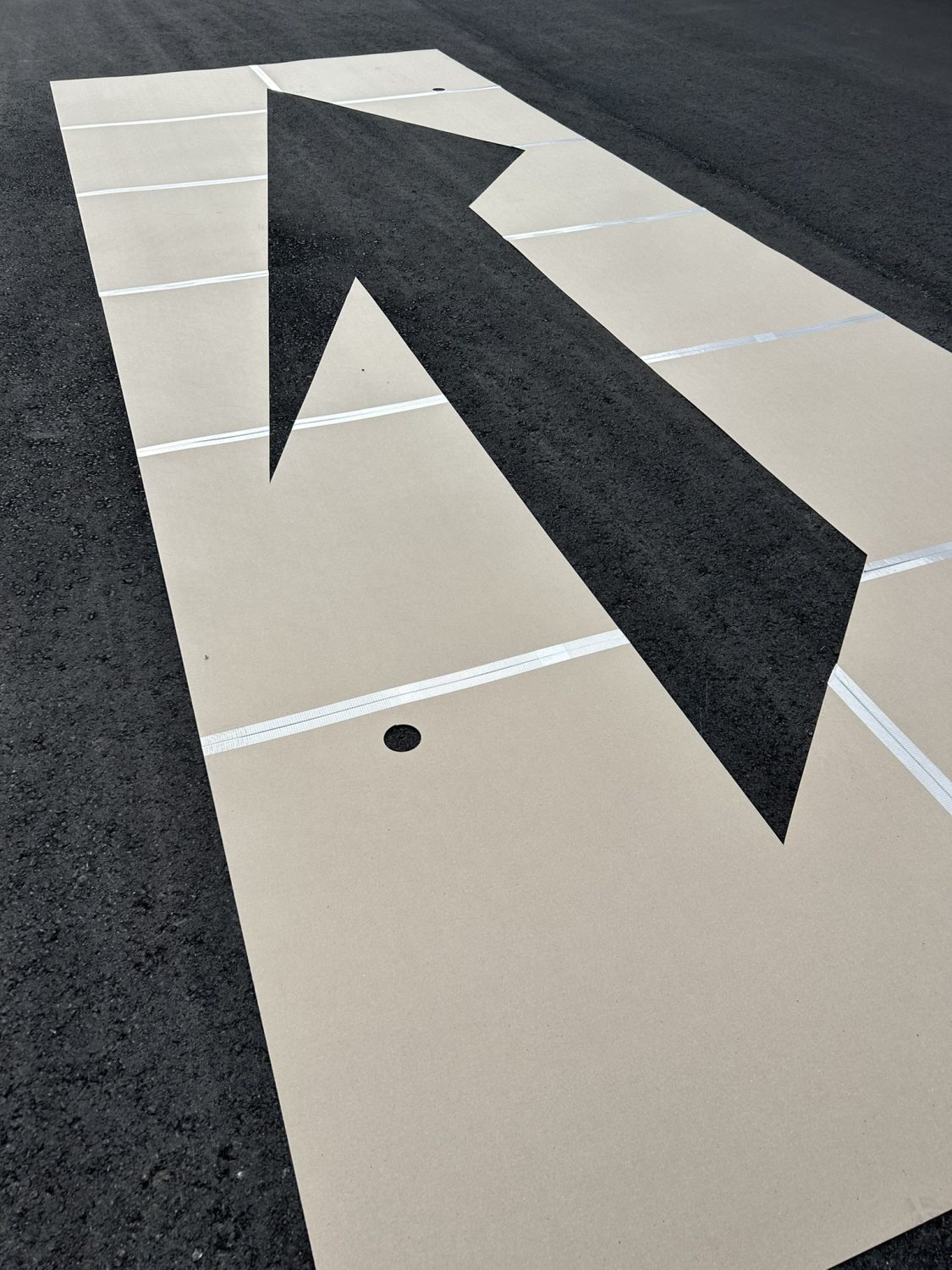

Freeway Exit Right – BFA 30R
Measurements:
4500 mm X 1900 mm
177” X 74”

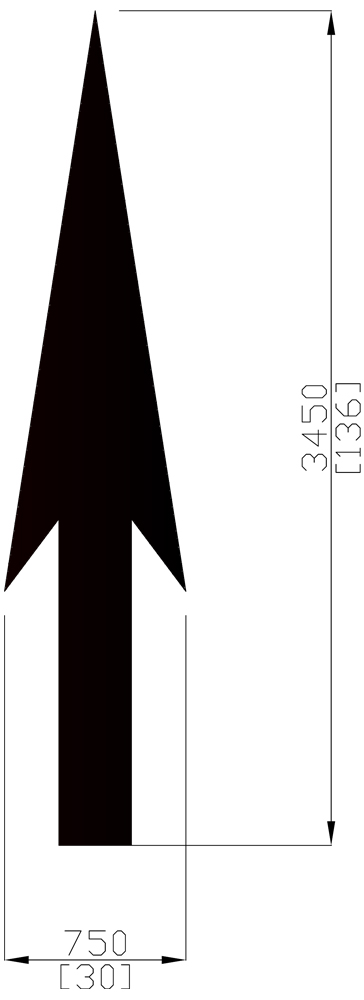

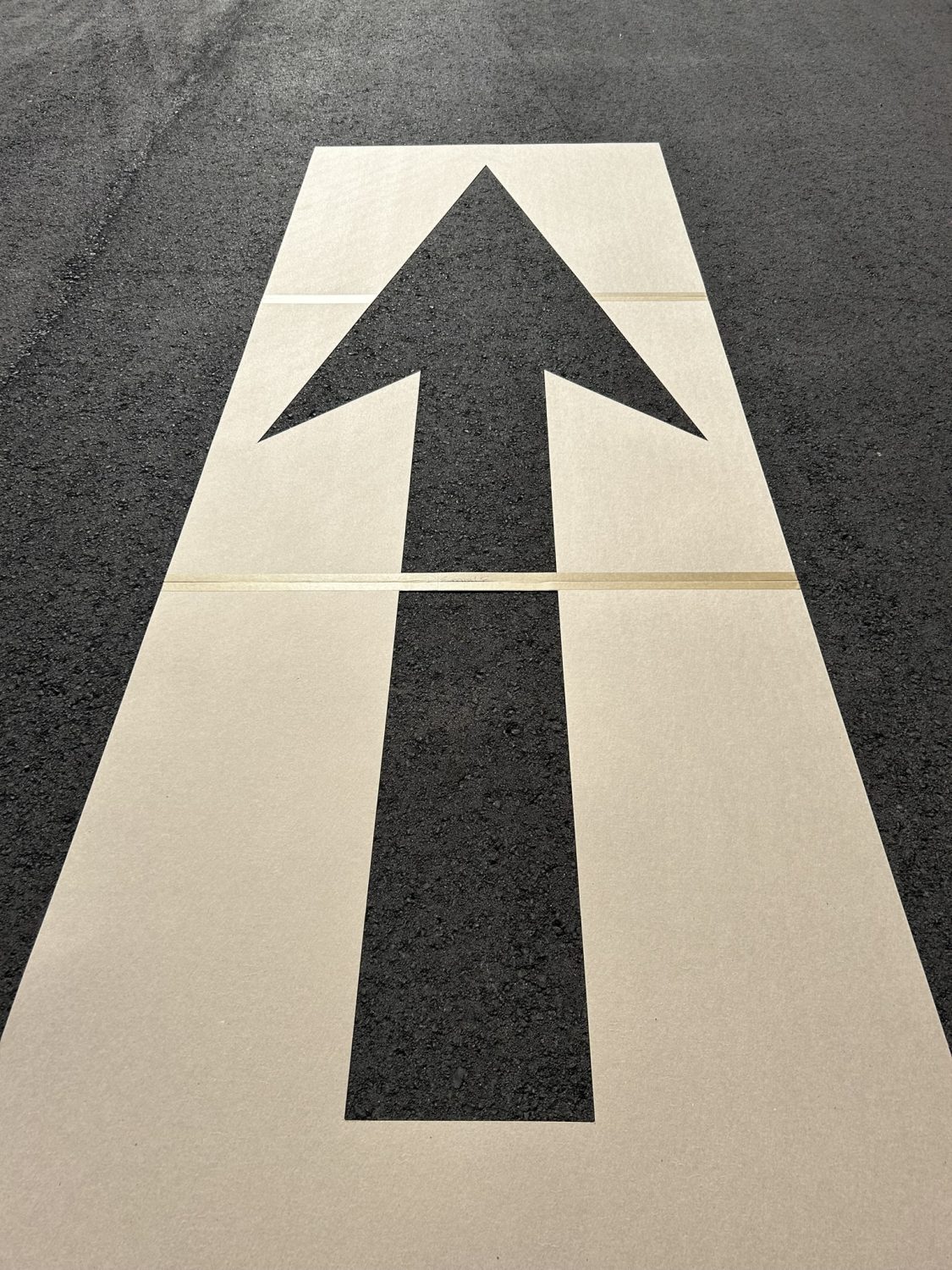

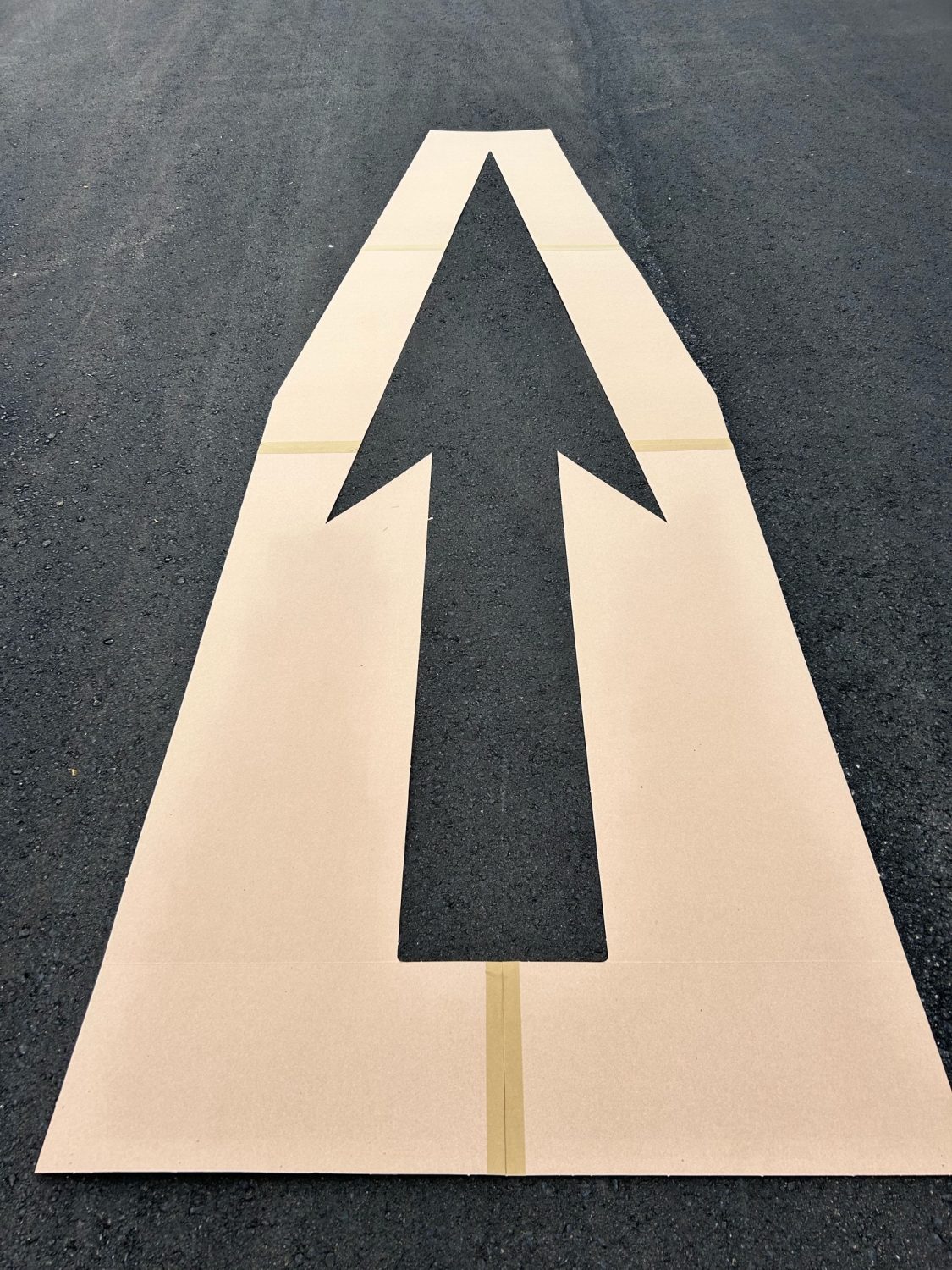

Canadian Straight Arrow – Straight 10
Measurements:
3450mm x 750mm

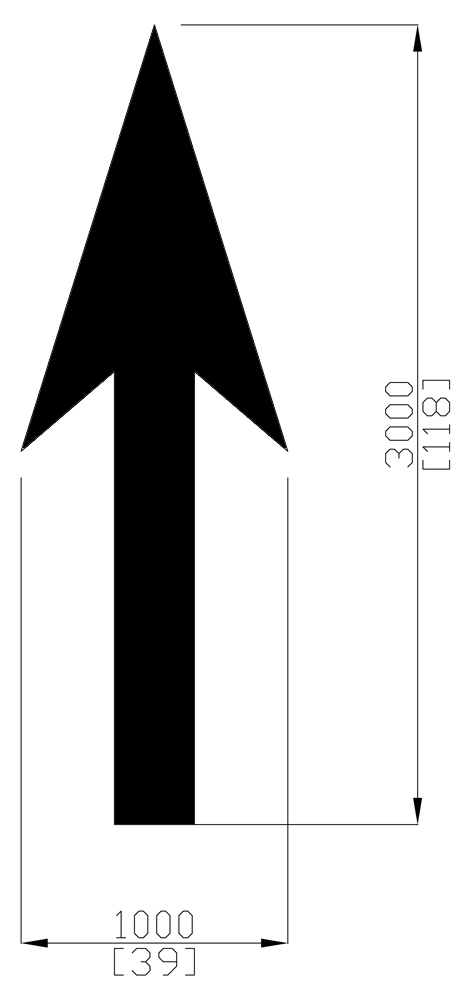

US Straight Arrow – Straight 20
Measurements:
118" x 39"

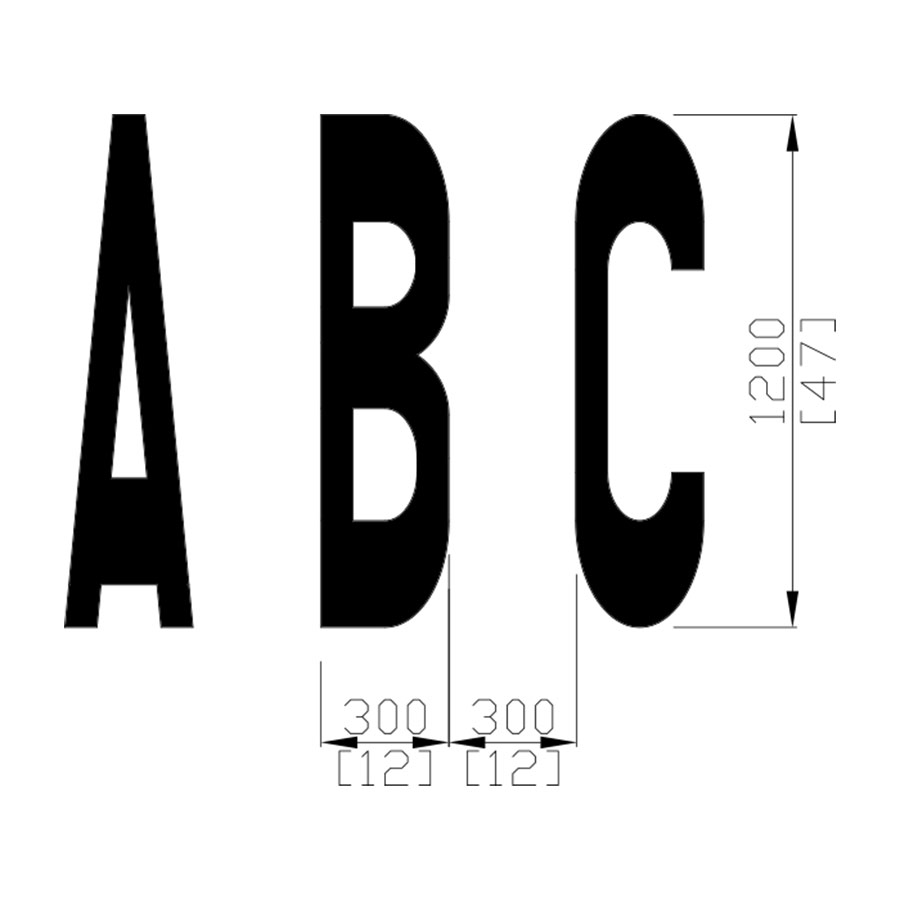

Letters 1.2m High – L12
Measurements:
1200 mm X 300 mm, 300 mm spacing

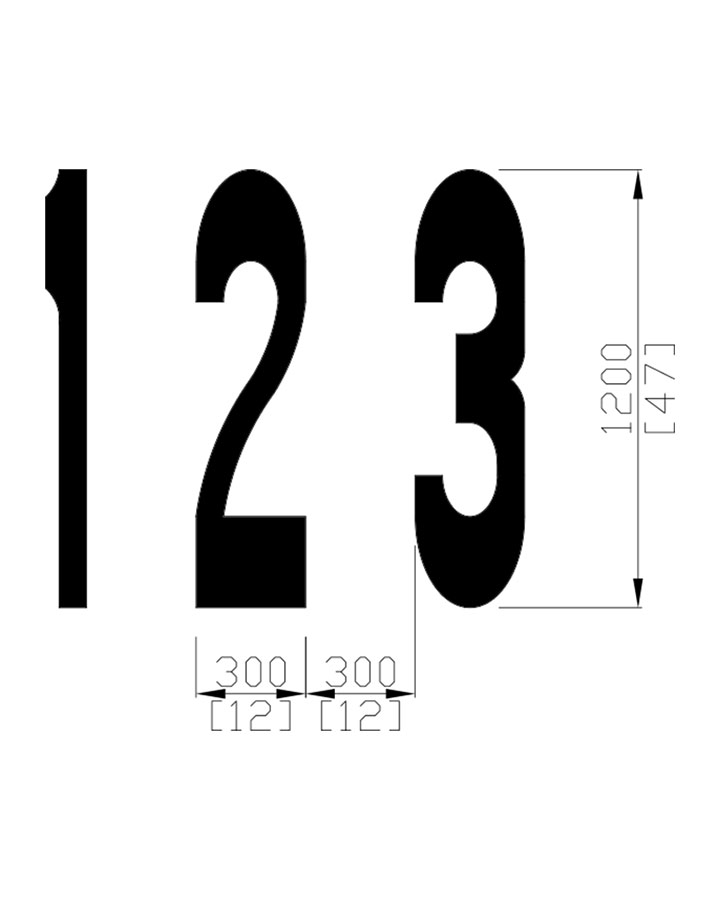

Numbers 1.2m High – N12
Measurements:
1200 mm X 300 mm, 300 mm spacing

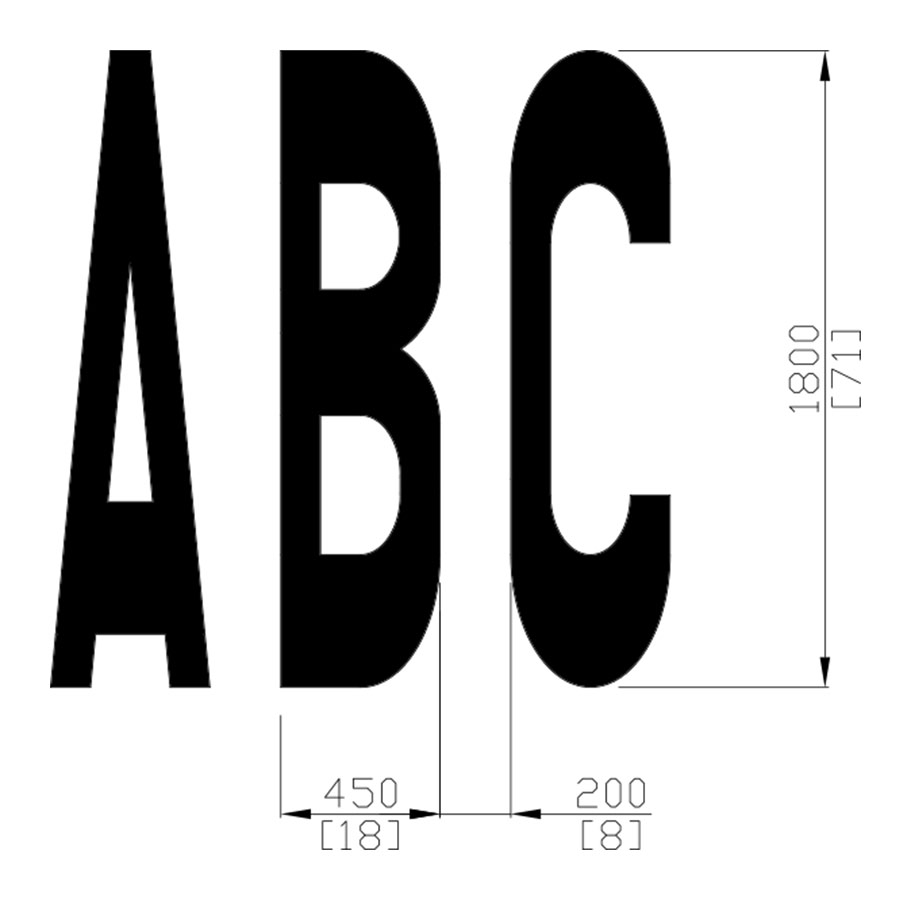

Letters 1.8m High – L18
Measurements:
1800 mm X 450 mm, 200 mm spacing

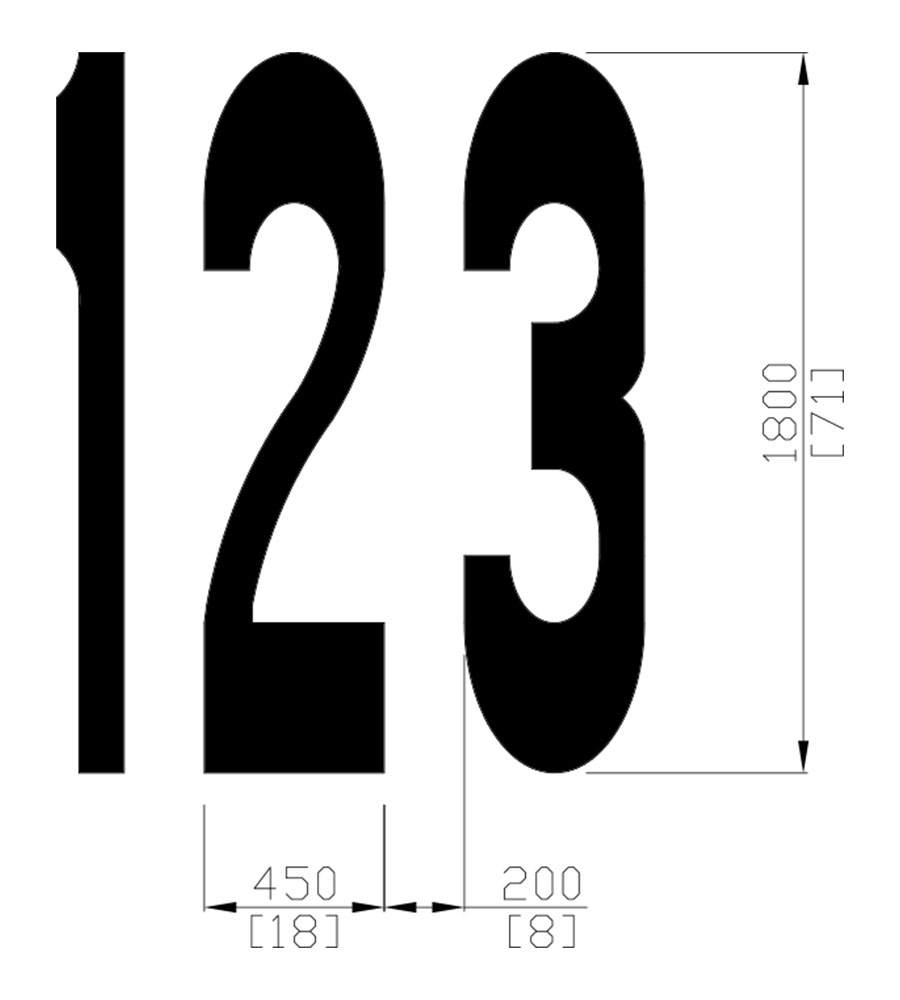

Numbers 1.8m High – N18
Measurements:
1800 mm X 450 mm, 200 mm spacing

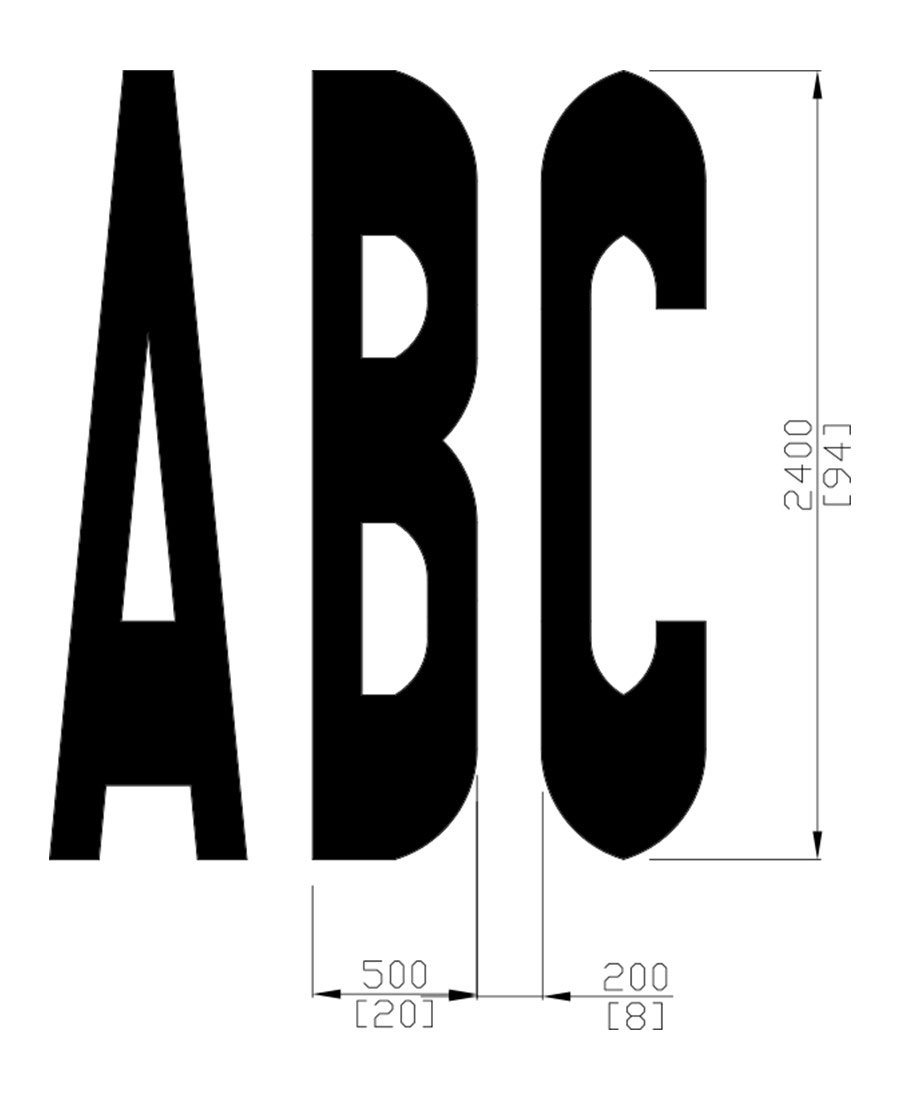

Letters 2.4 m high – L24
Measurements:
2400 mm X 500 mm, 200 mm spacing

Numbers 2.4 m high – N24
Measurements:
2400 mm X 500 mm, 200 mm spacing
