Bicycle Paths

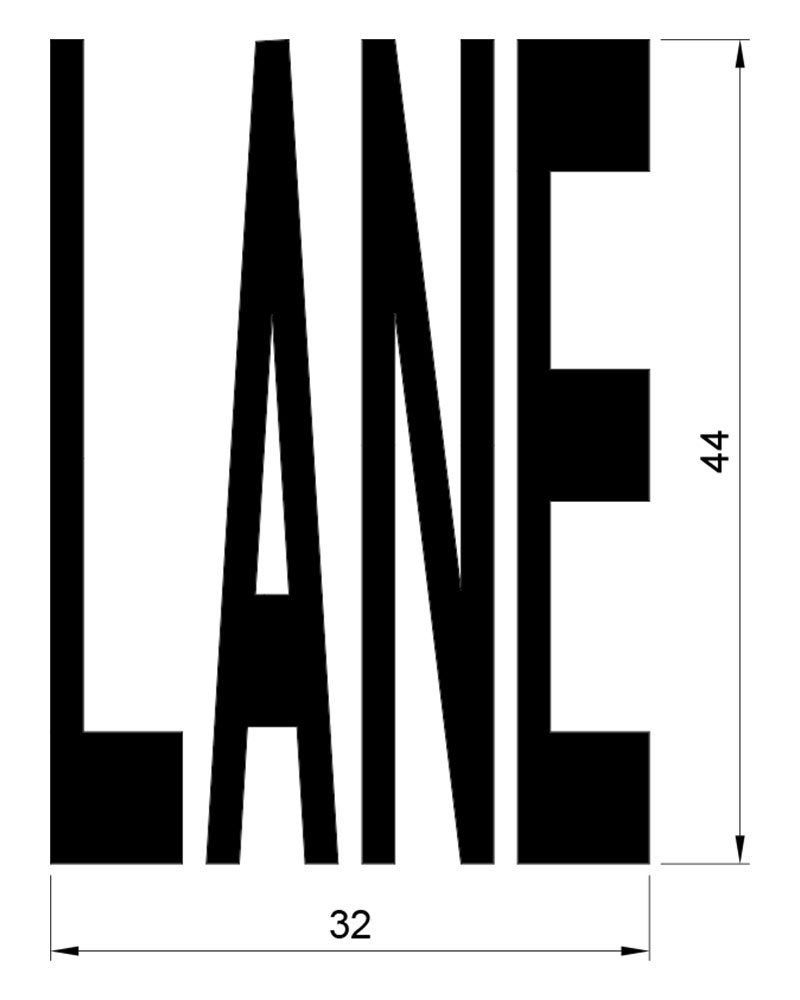

LANE 44X32
Measurements:
44” X 32”

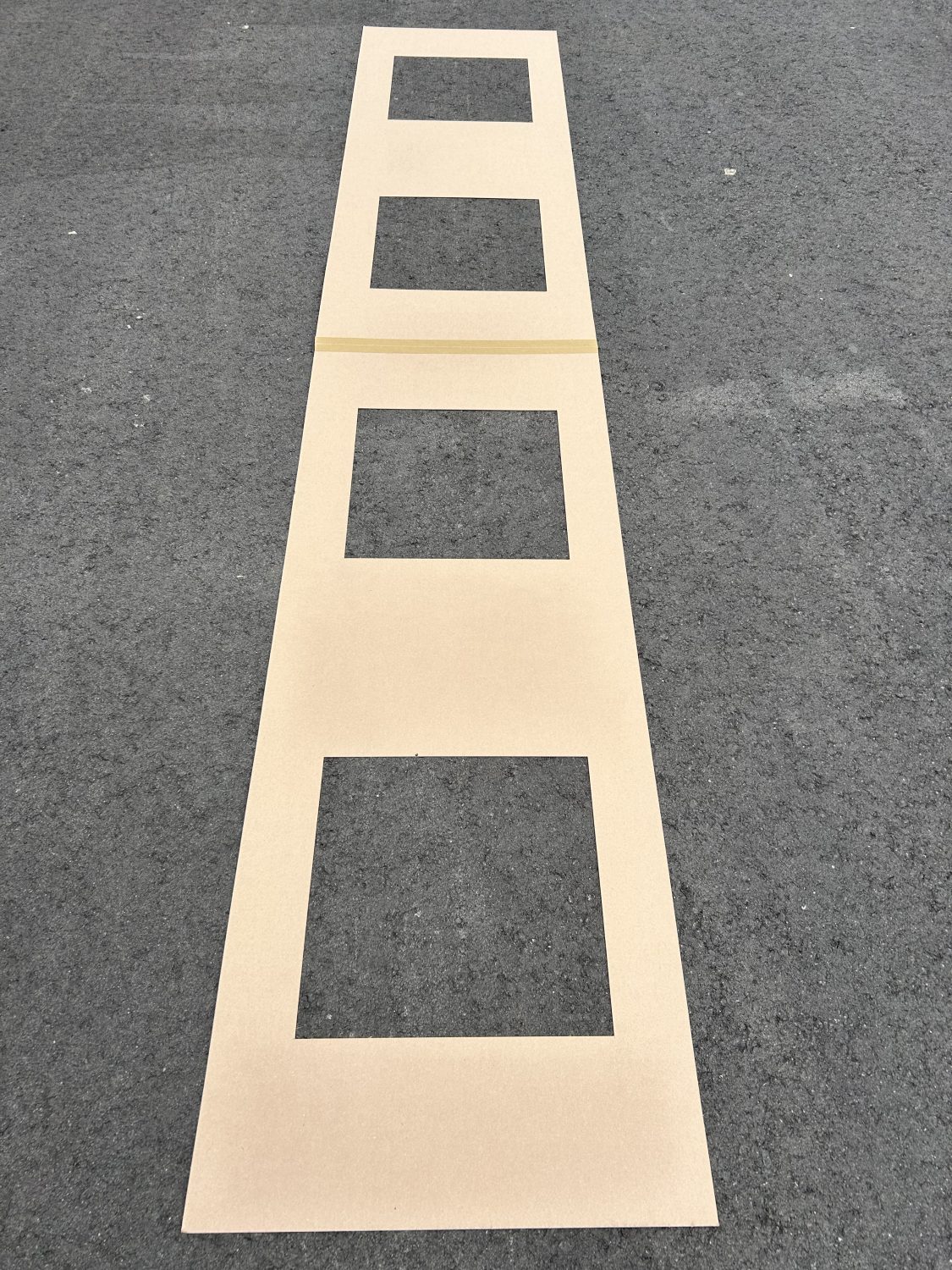

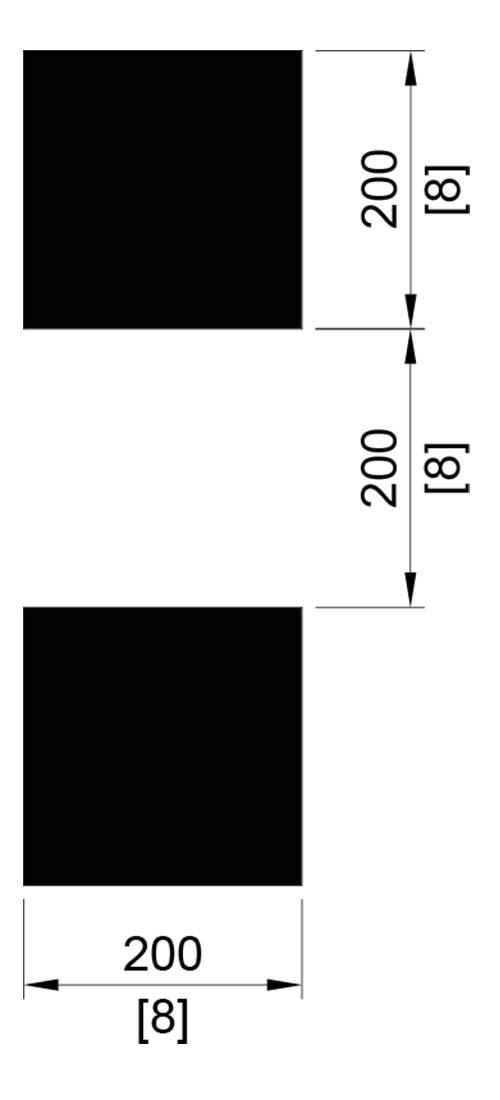

Elephant Feet – Elephant 2020
Measurements:
200 mm X 200 mm - 200mm space
8” X 8” - 8” space

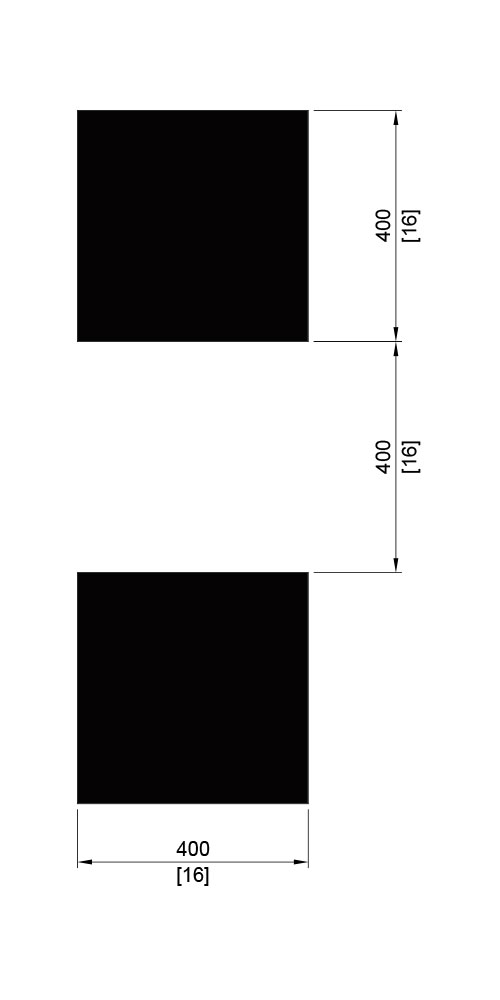

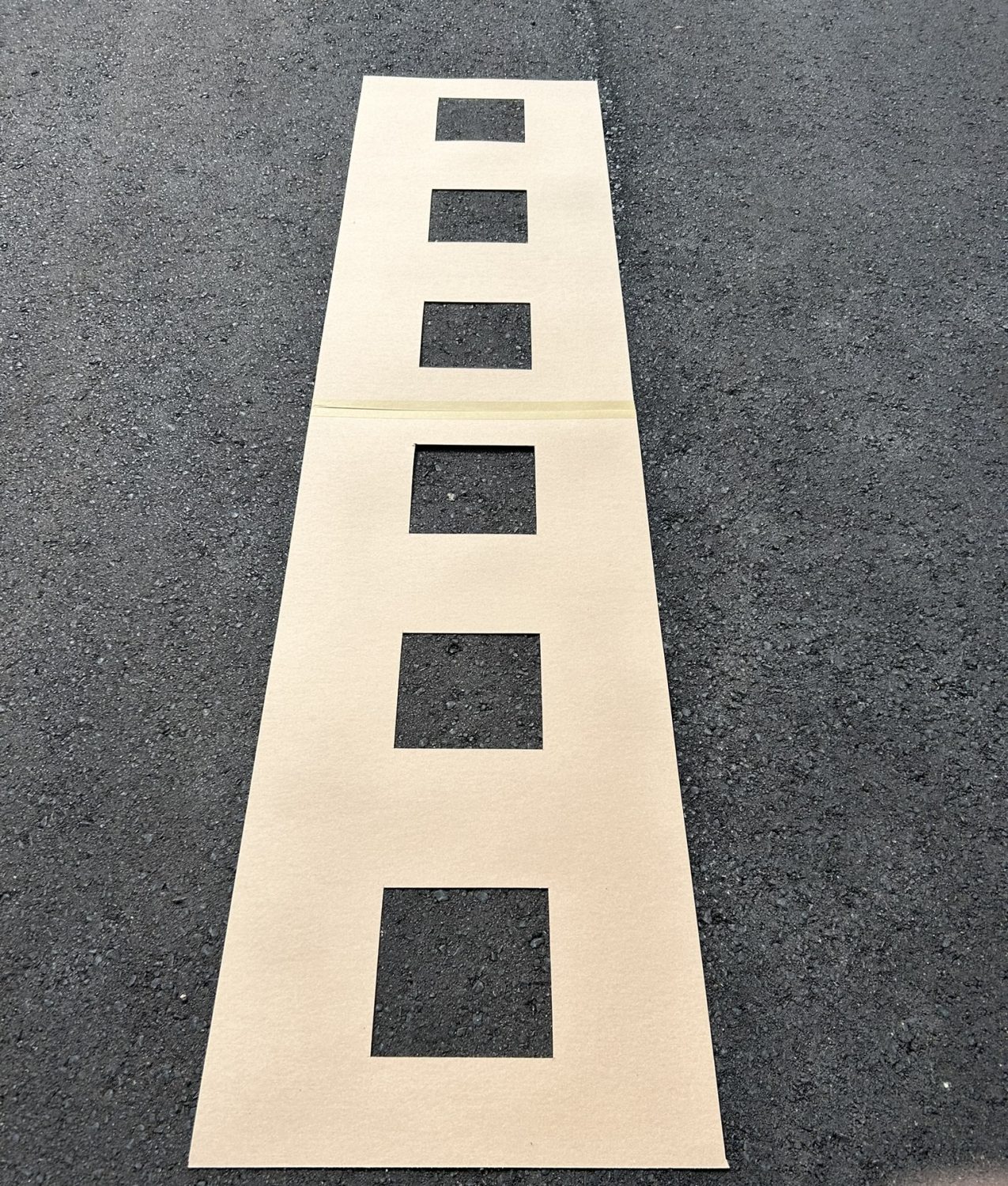

Elephant Feet – Elephant 4040
Measurements:
400 mm X 400 mm - 400 mm space
16” X 16” - 16” space

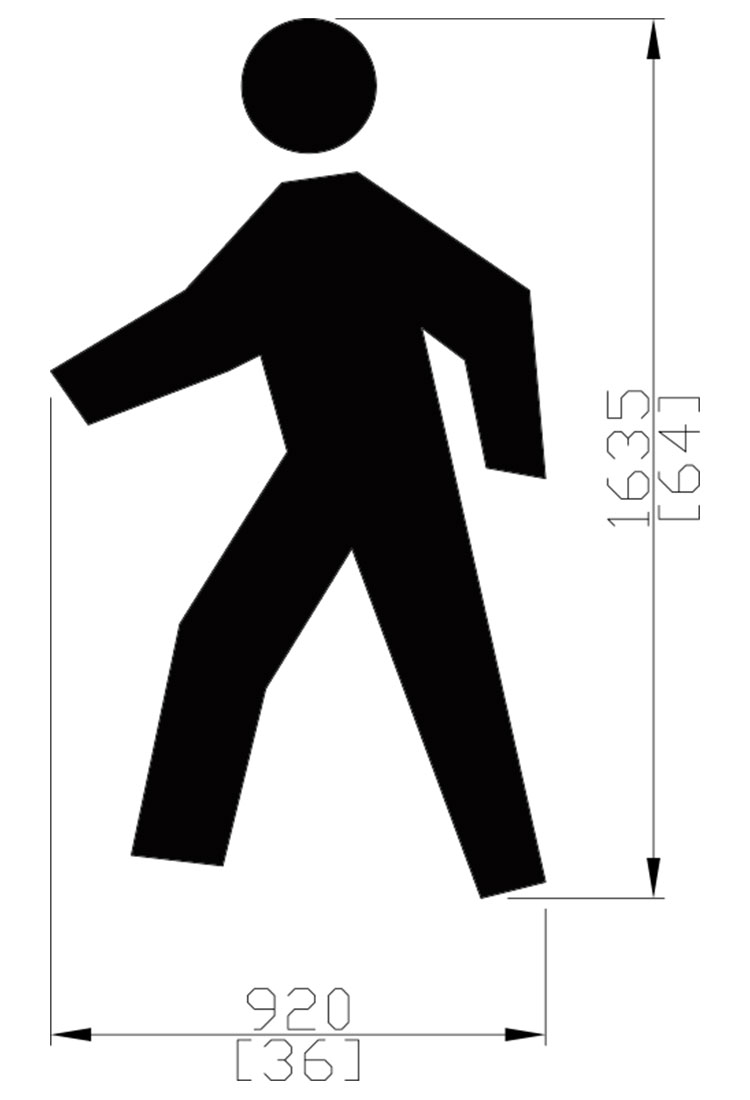

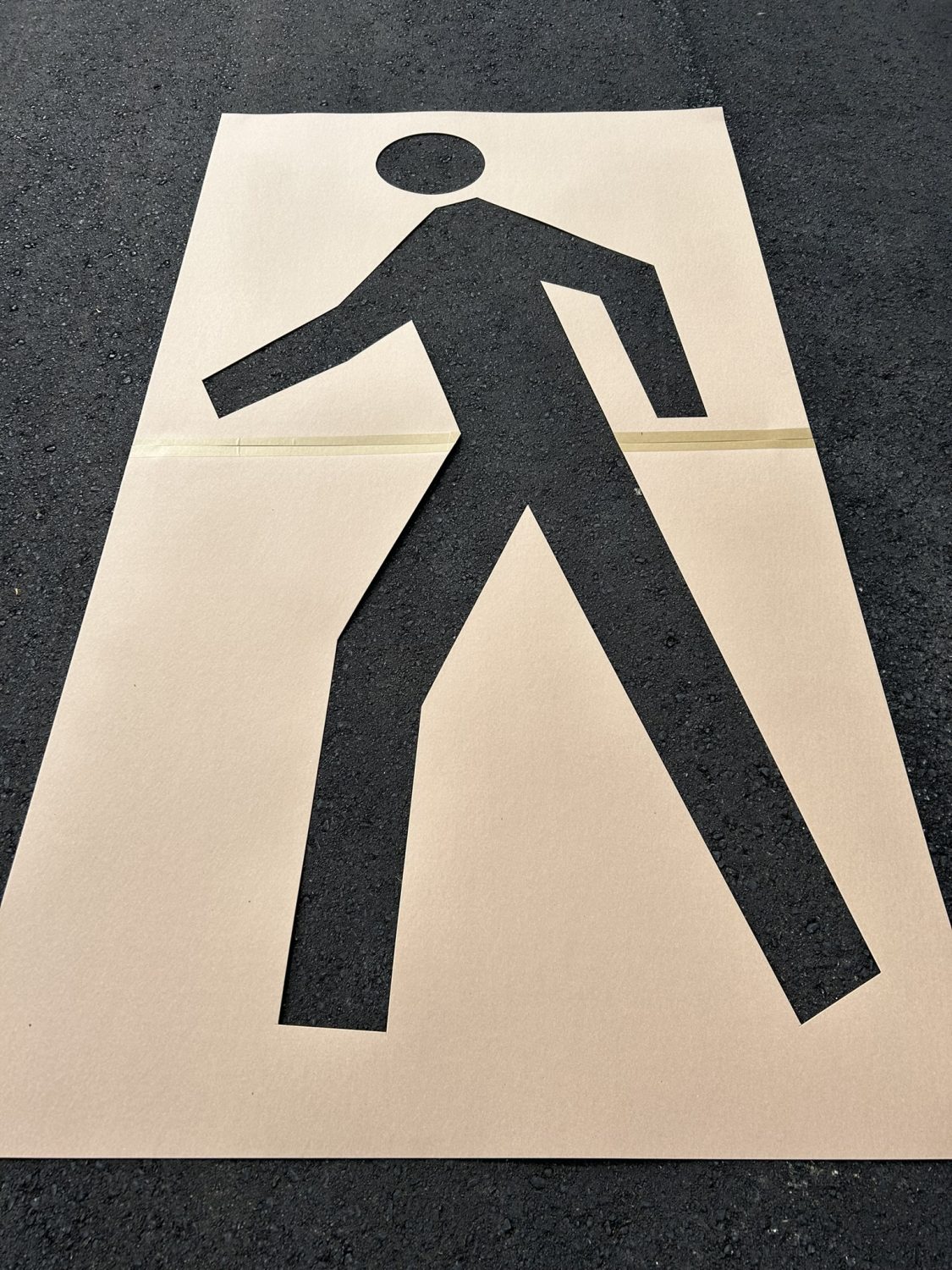

Pedestrian – Pedestrian 10
Measurements:
1635 mm X 920 mm
64” X 36”

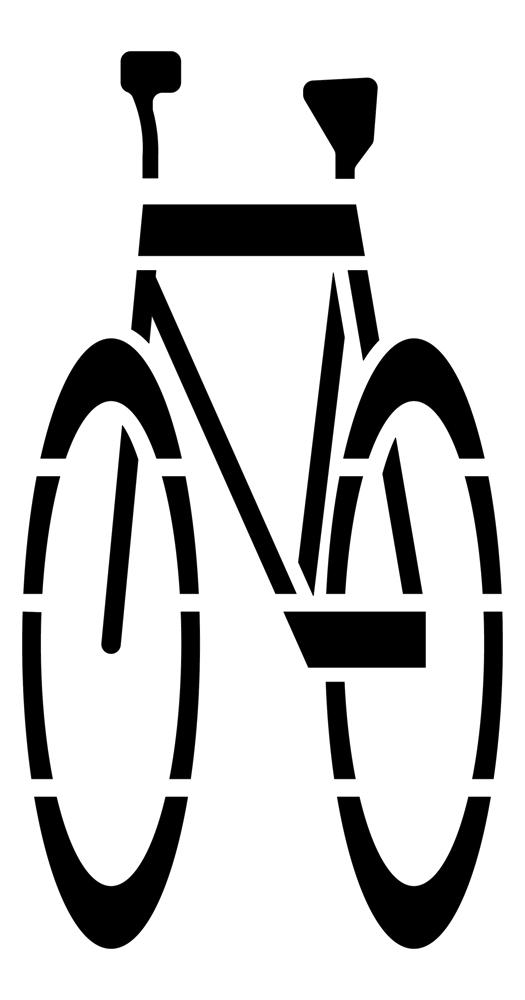

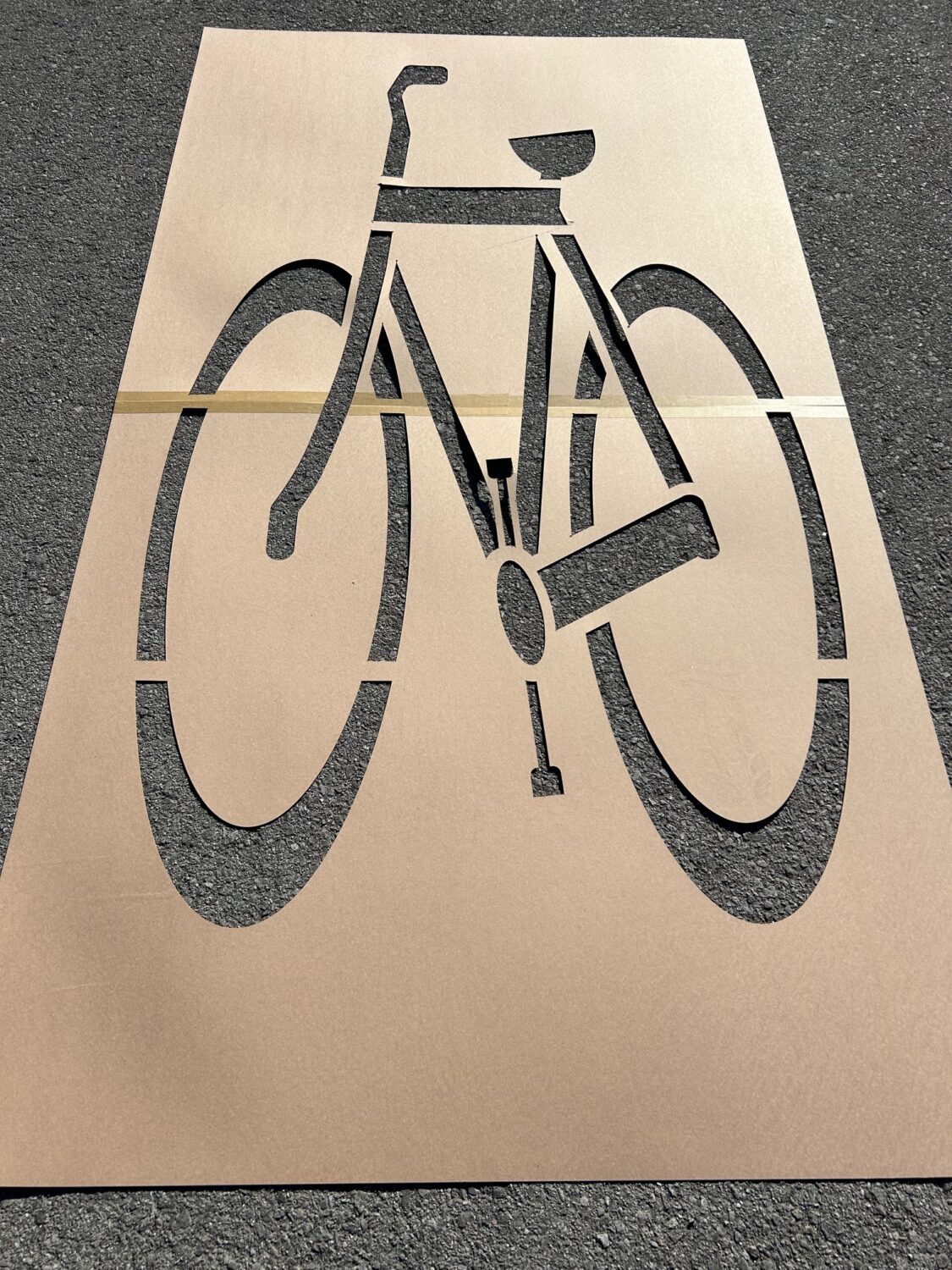

Bicycle – B10
Measurements:
71” x 38”
1800 mm x 970 mm

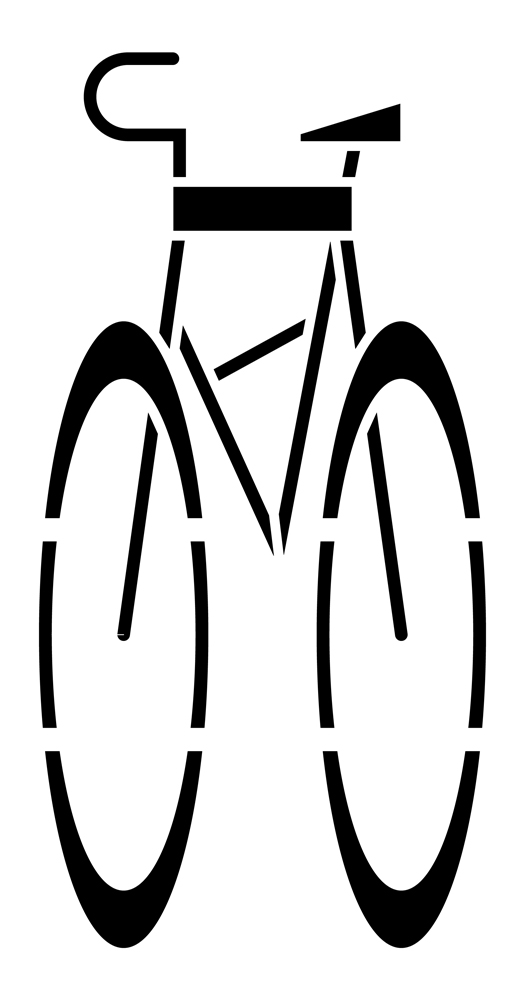

Bicycle – B20
Measurements:
79" x 39"
2000 mm x 1000 mm

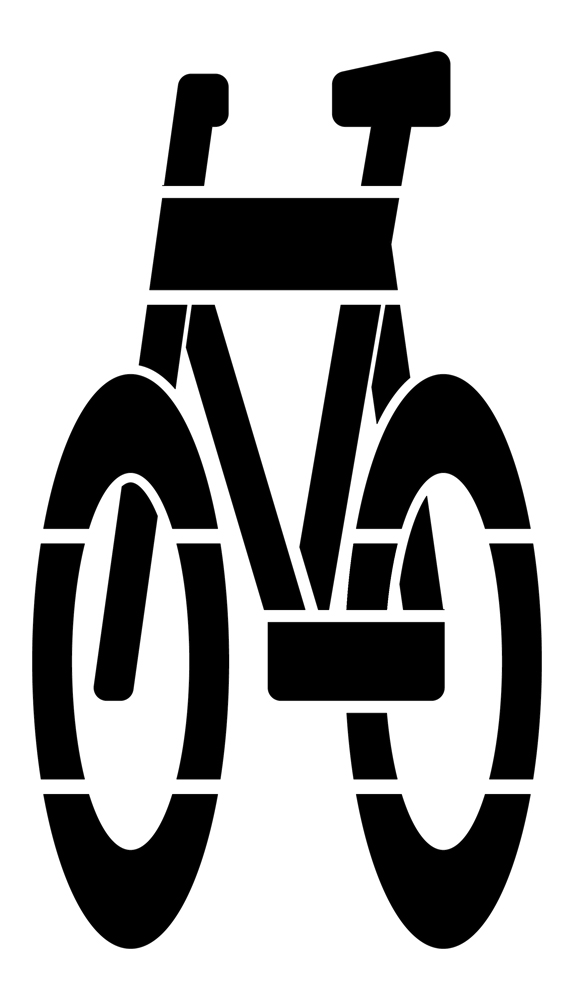

Bicycle – B30
Measurements:
69" x 39"
1750 mm x 1000 mm

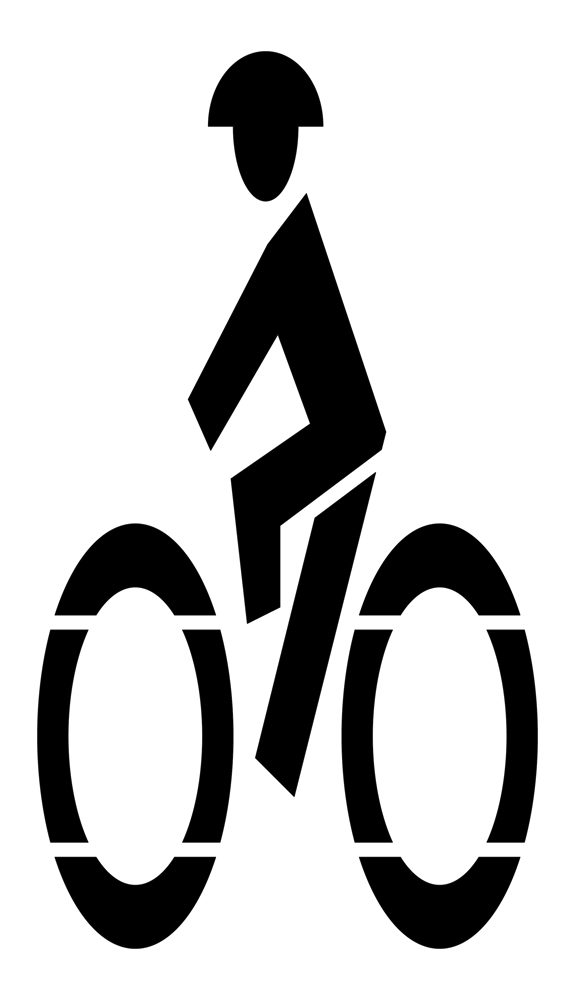

Bicycle – B40
Measurements:
71" x 40"
1800 mm x 1000 mm

Bicycle – B41(NYDOT)
Measurements:
68" x 37"
1725 mm x 940 mm

Bicycle – B50
Measurements:
71" x 39"
1800 mm x 1000 mm

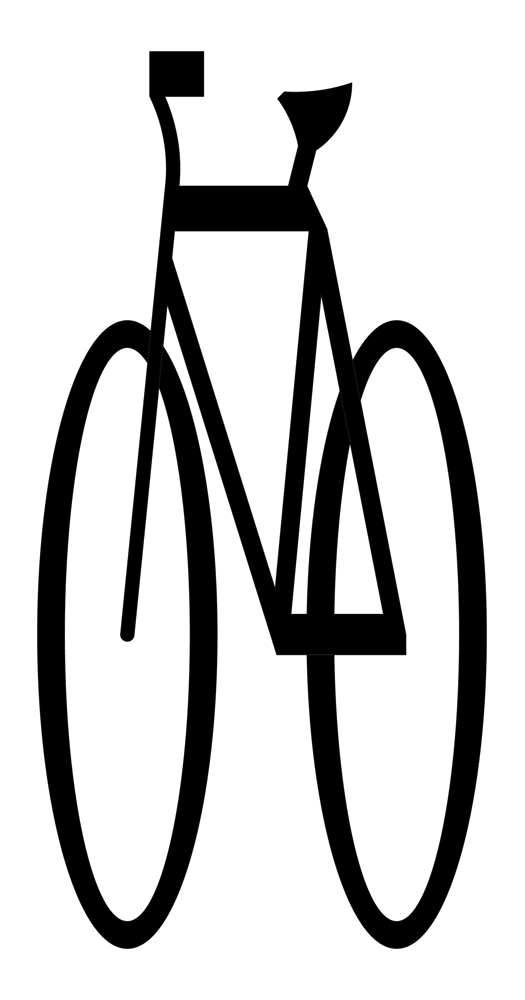

Bicycle – B60
Measurements:
79" x 39"
2000 mm x 1000 mm

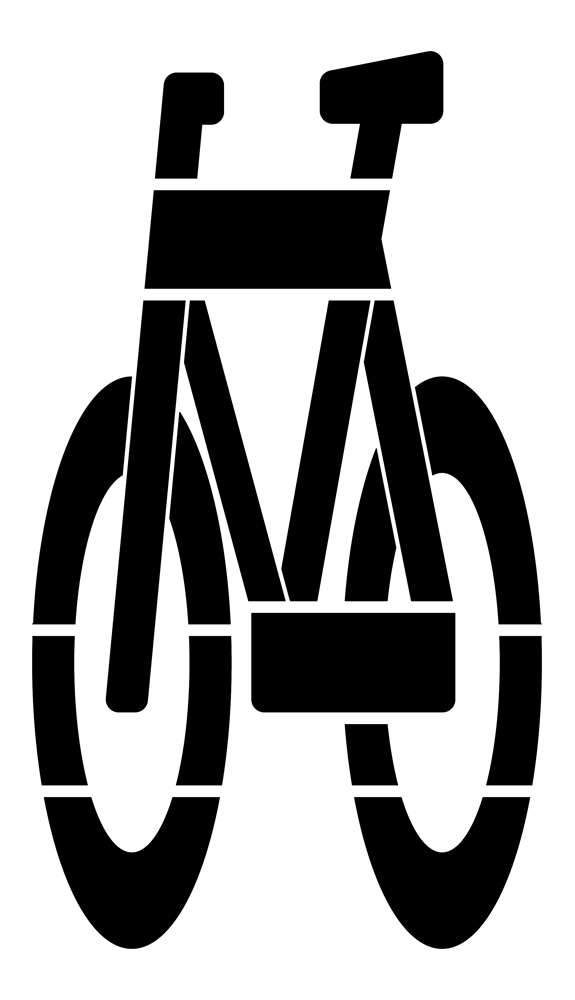

Bicycle – B70 (Toronto)
Measurements:
69" x 40"
1740 mm x 1000 mm

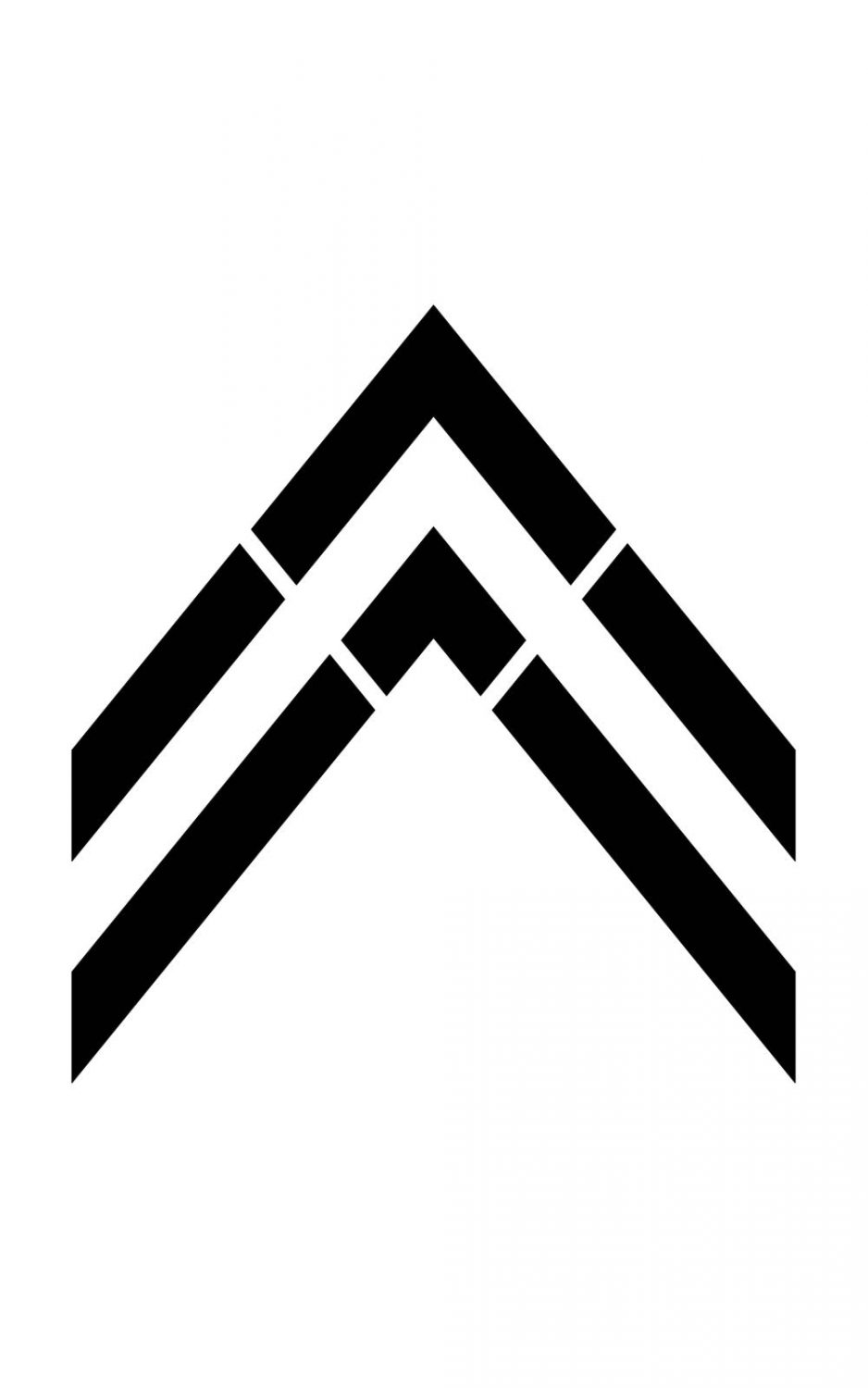

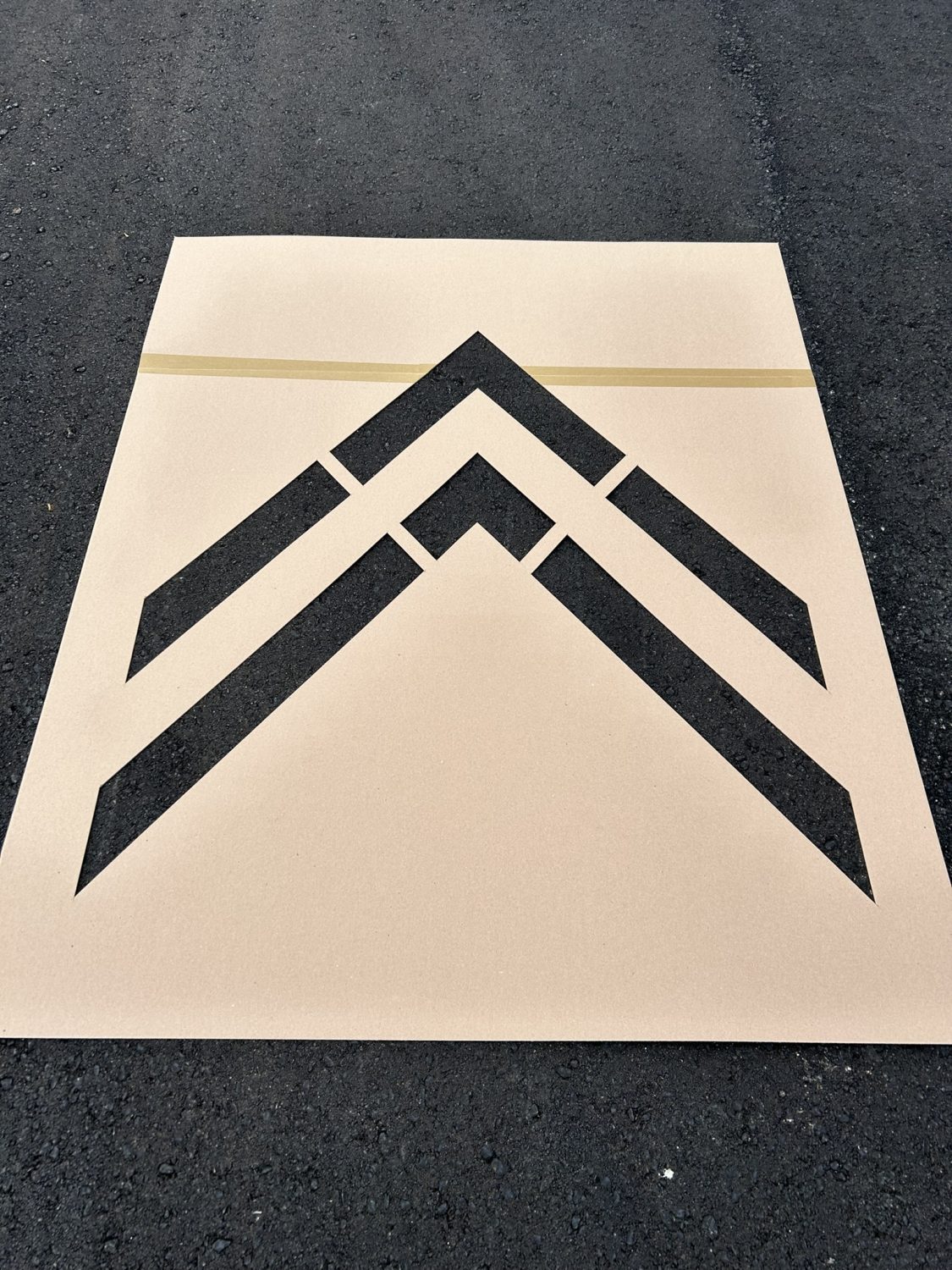

Double Chevron – DC10
Measurements:
42" x 40"
1070 mm x 1000 mm

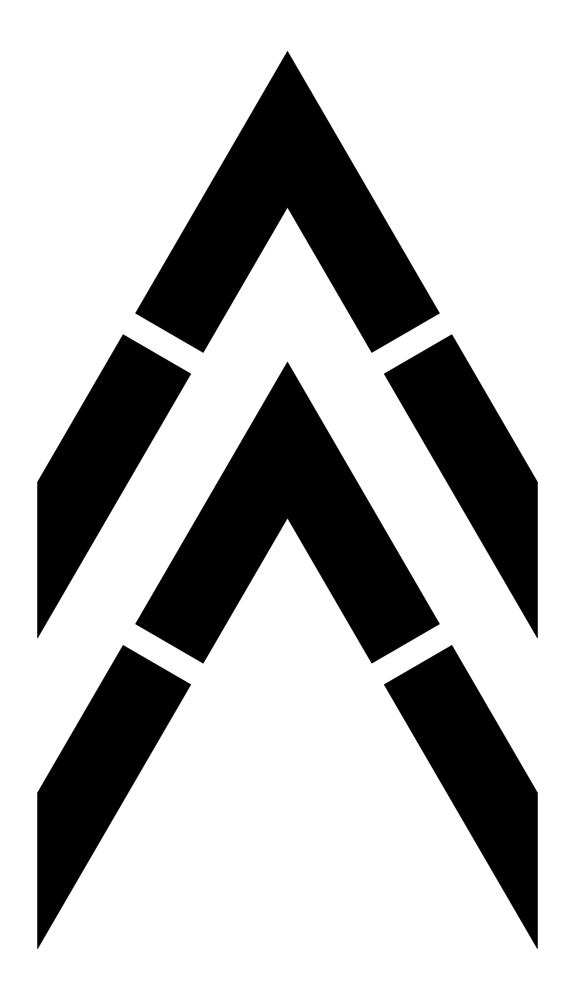

Double Chevron – DC20
Measurements:
71" x 40"
1800 mm x 1000 mm

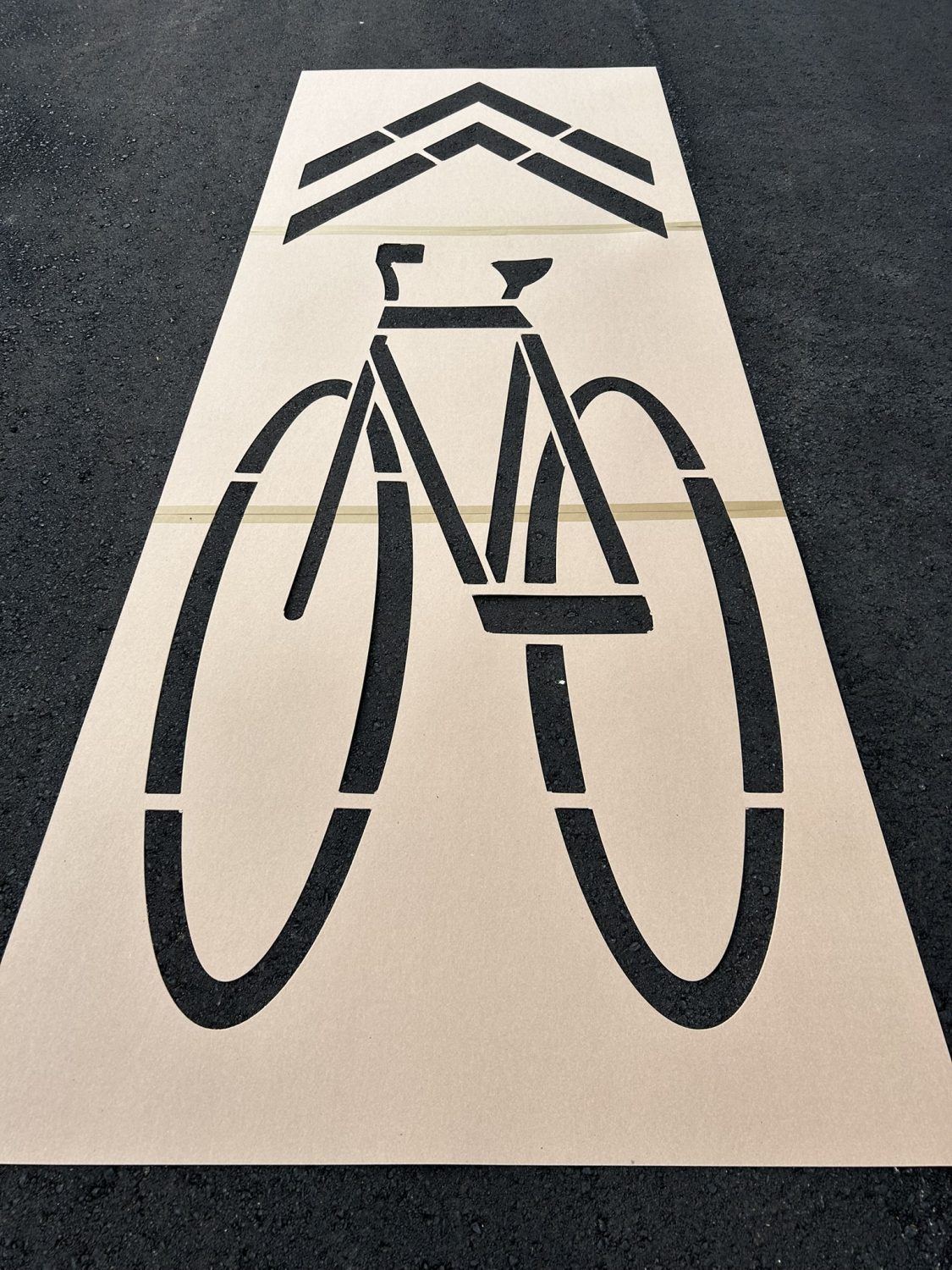

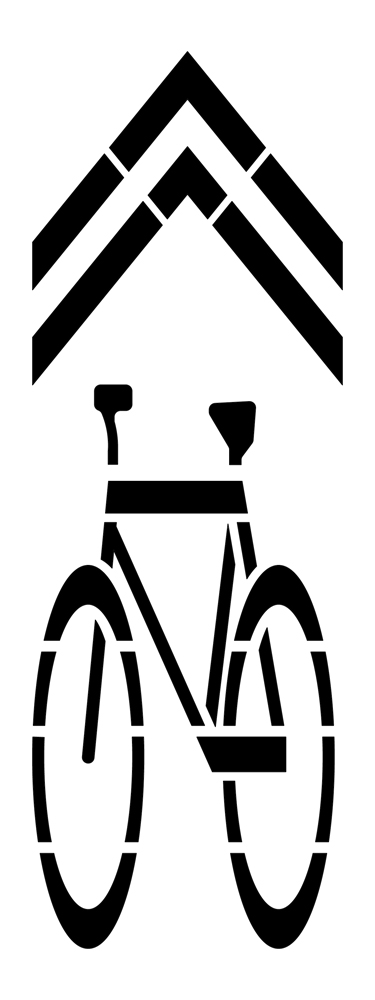

Sharrow – B10S1
Measurements:
113" x 39"
2900 mm x 1000 mm

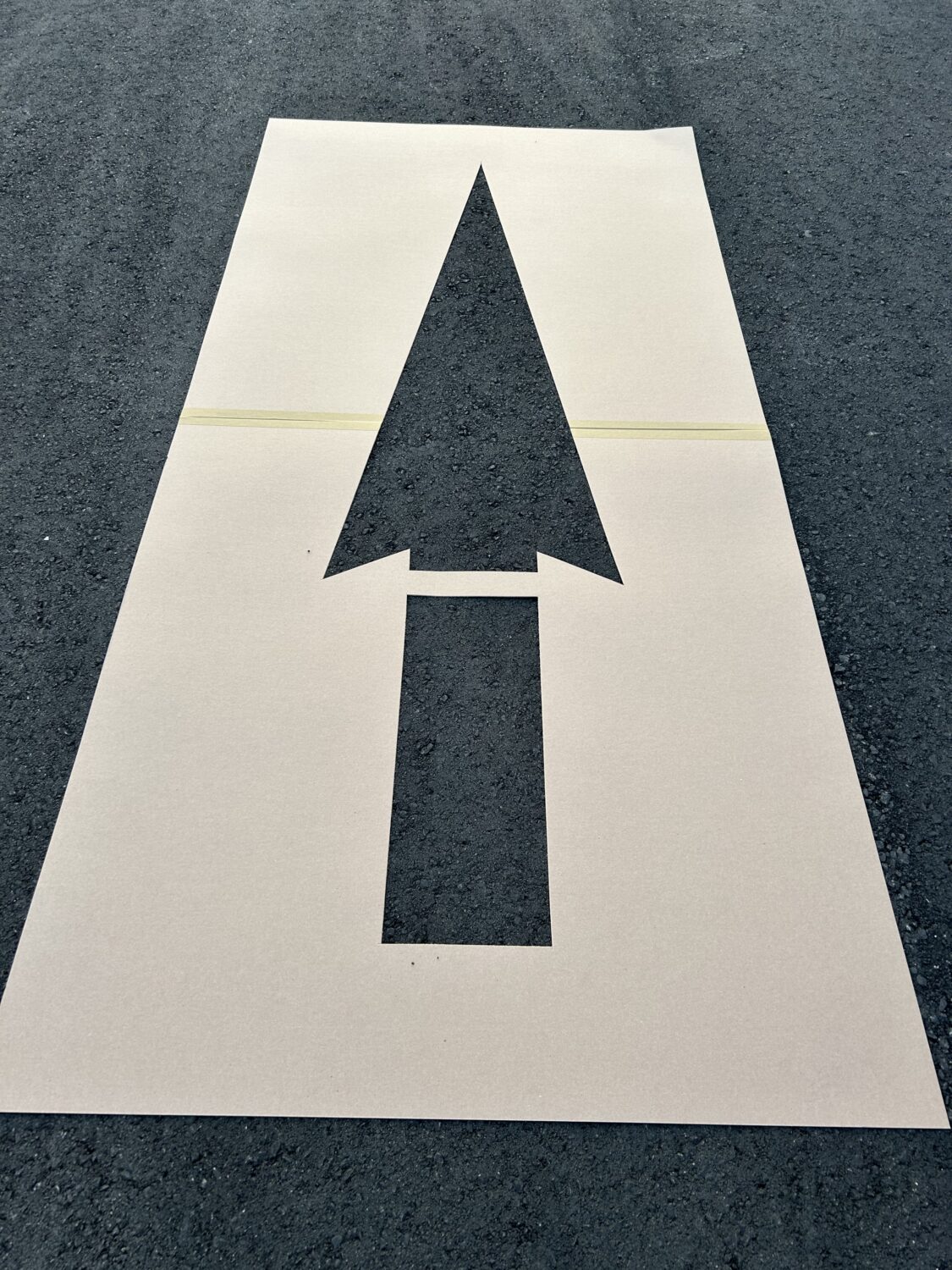

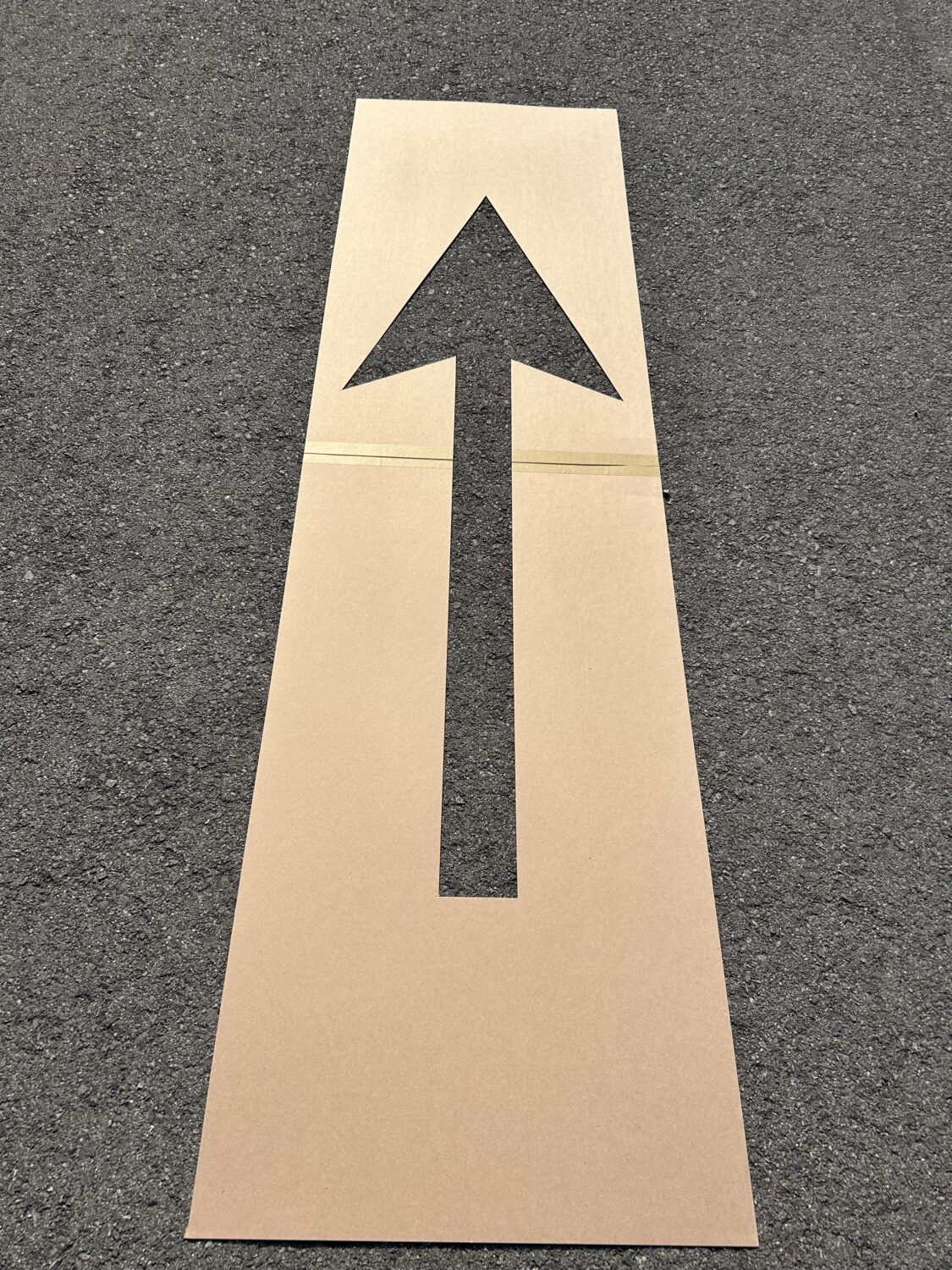

Bike Straight Arrow – BSA2X05
Measurements:
79" x 20"
2000 mm x 500 mm

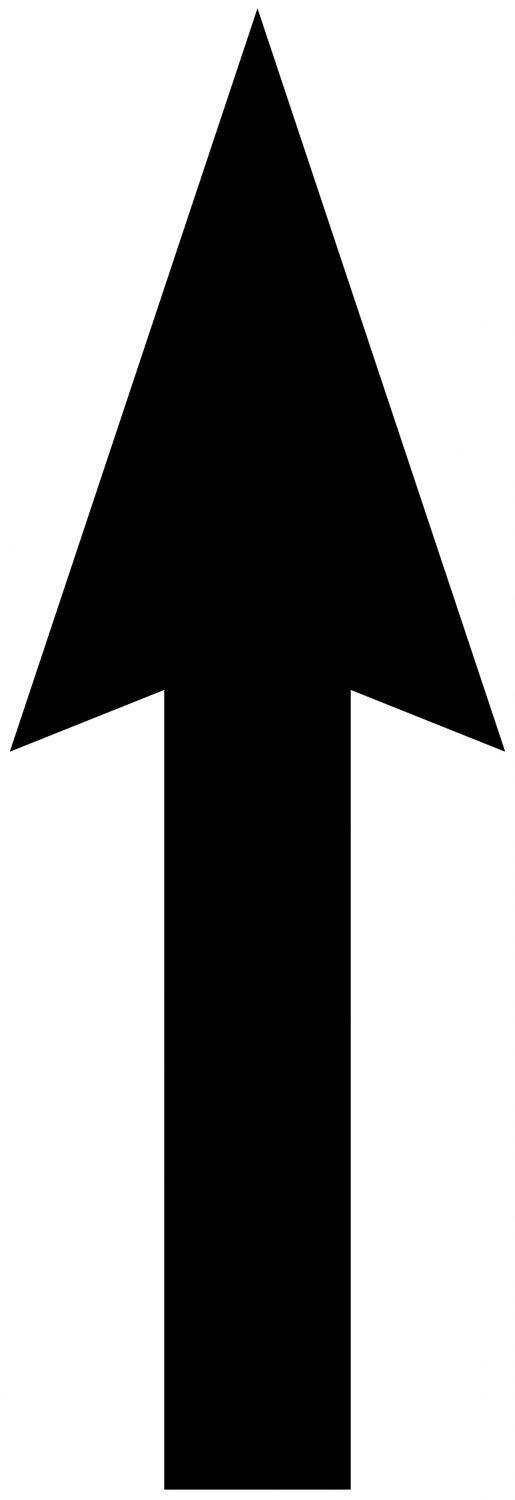

Bike Straight Arrow – BSA12X4 (NYDOT)
Measurements:
48" x 16"
1200 mm x 400 mm

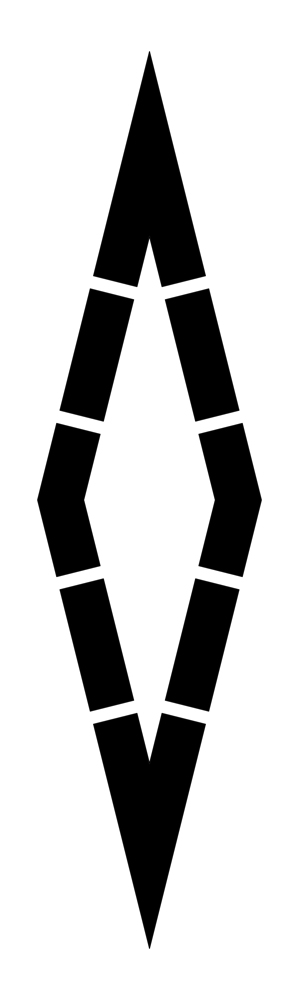

Diamond – BD2X05
Measurements:
79" x 20"
2000 mm x 500 mm

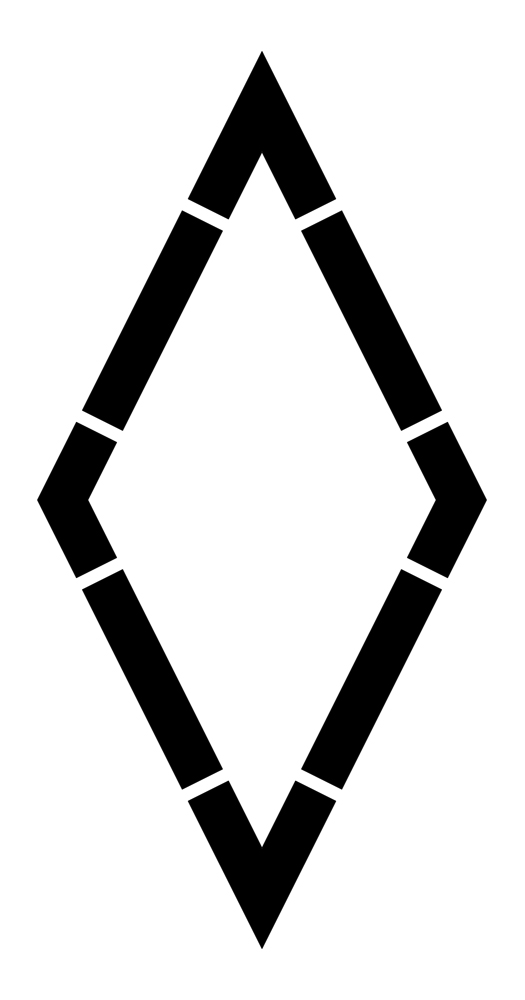

Diamond – BD2X1
Measurements:
79" x 40"
2000 mm x 1000 mm

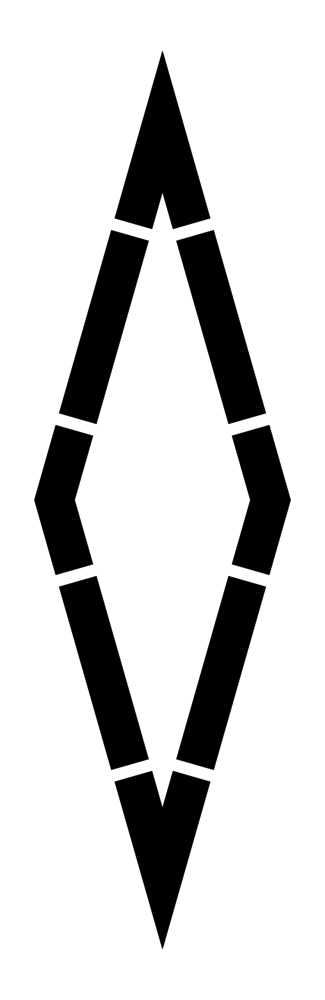

Diamond – BD35X1
Measurements:
138" x 39"
3500 mm x 1000 mm

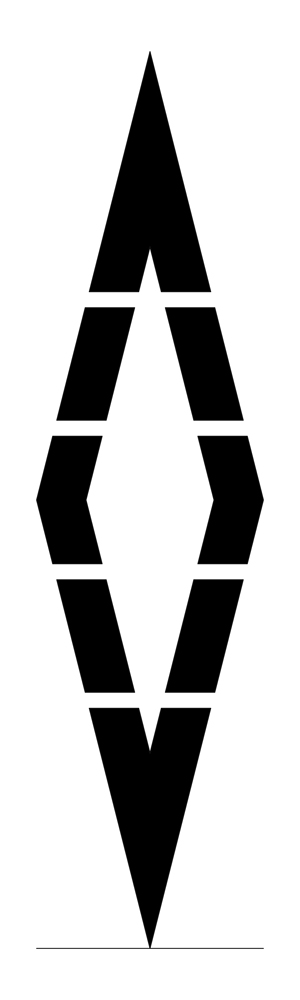

Diamond – BD28X07 (Kingston)
Measurements:
111" x 28"
2800 mm x 710 mm

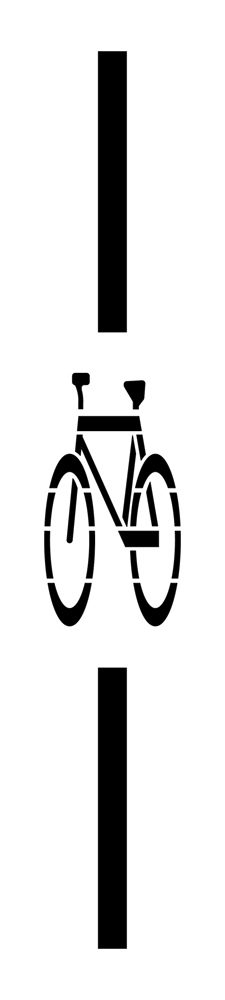

Bicycle Detection Symbol – BDET10
Measurements:
63" x 9"
1600 mm x 240 mm

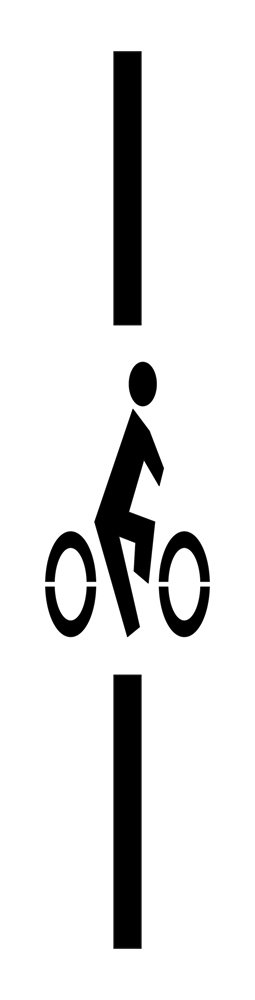

Bicycle Detection Symbol – BDET20
Measurements:
65" x 12"
1640 mm x 300 mm

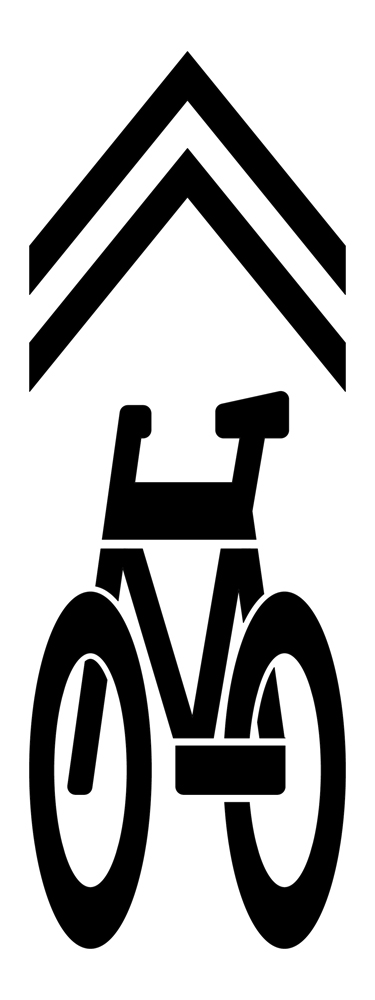

Sharrow – B30S1
Measurements:
111" x 39"
2800 mm x 1000 mm

Sharrow – B50S1
Measurements:
111" x 39"
2800 mm x 1000 mm

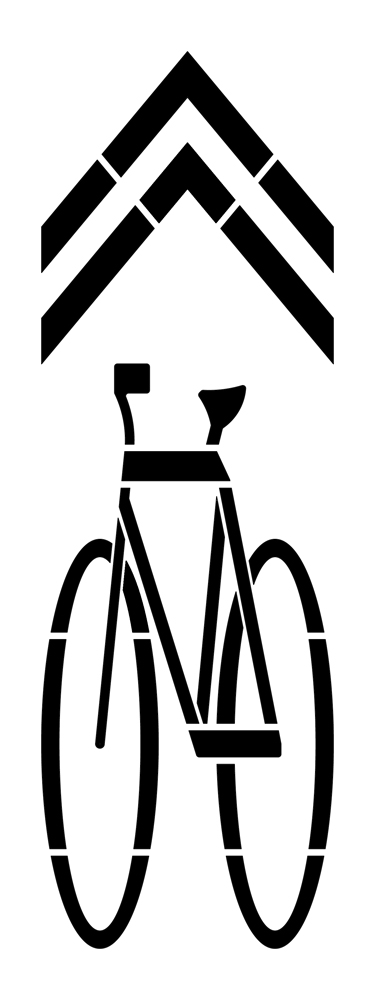

Sharrow – B60S1
Measurements:
121" x 40"
3100 mm x 1000 mm

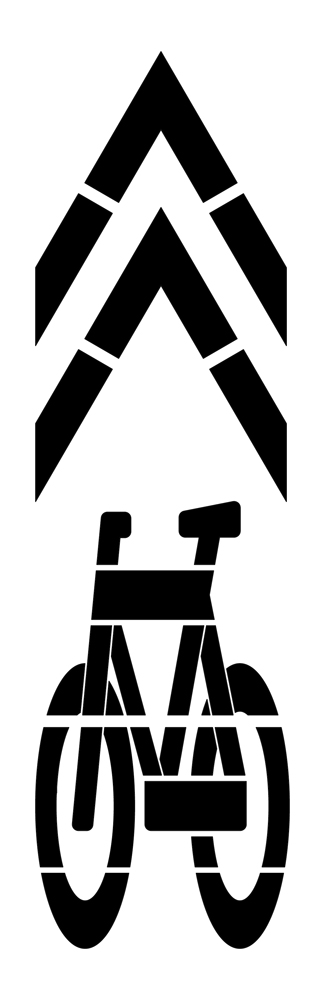

Sharrow – B70S2
Measurements:
141" x 40"
3600 mm x 1000 mm

Bike Straight Arrow – BSA16X7
Measurements:
63" x 28"
1600 mm x 700 mm

Bike Straight Arrow – BSA15X5
Measurements:
59" x 20"
1500 mm x 500 mm

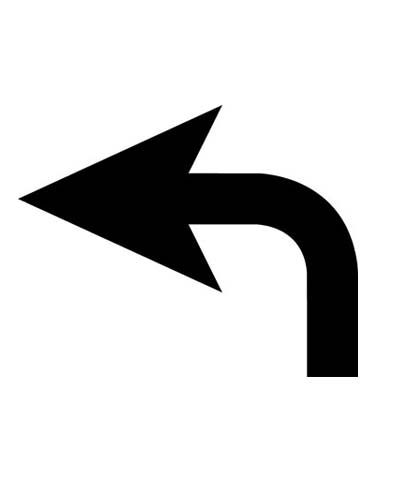

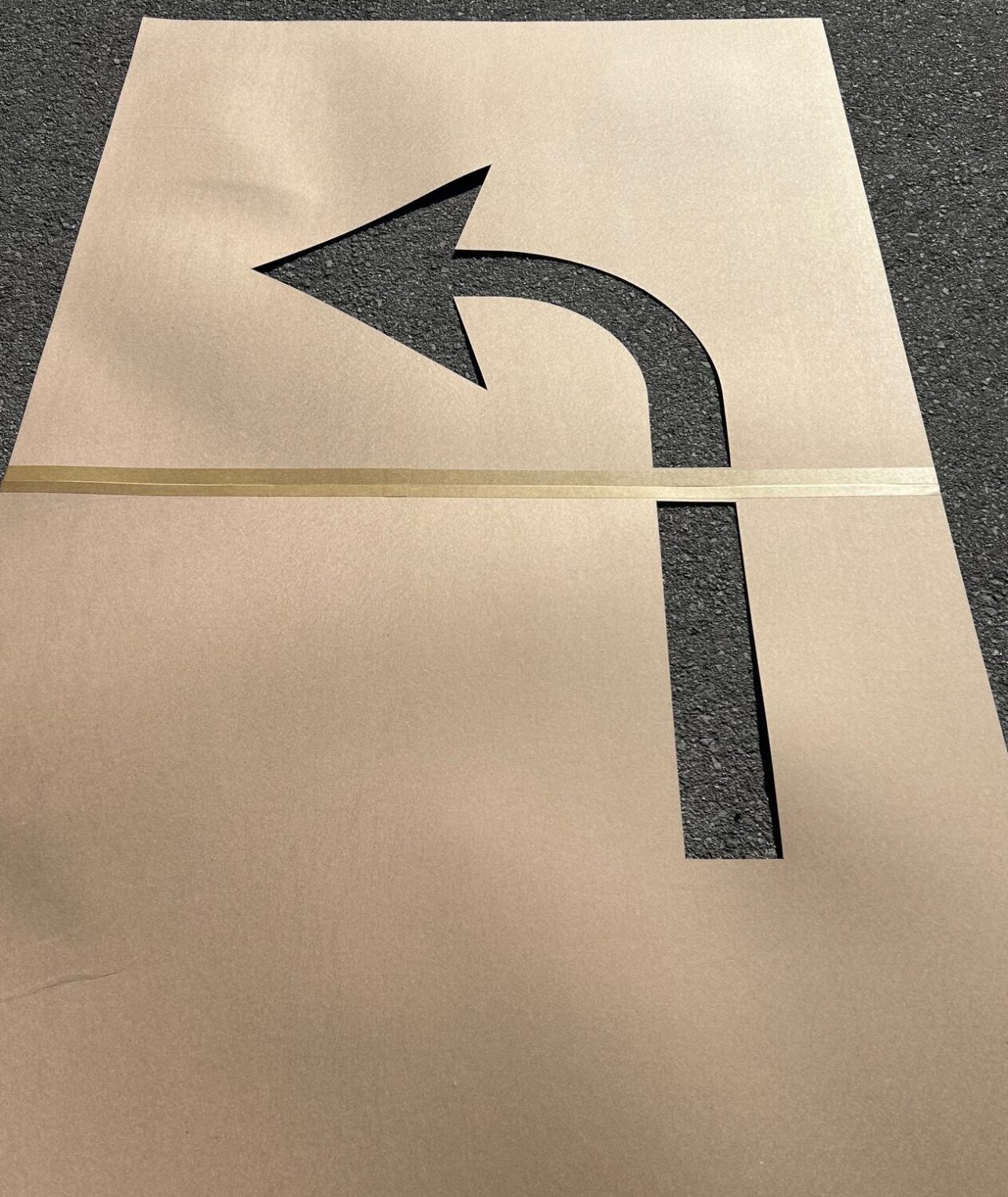

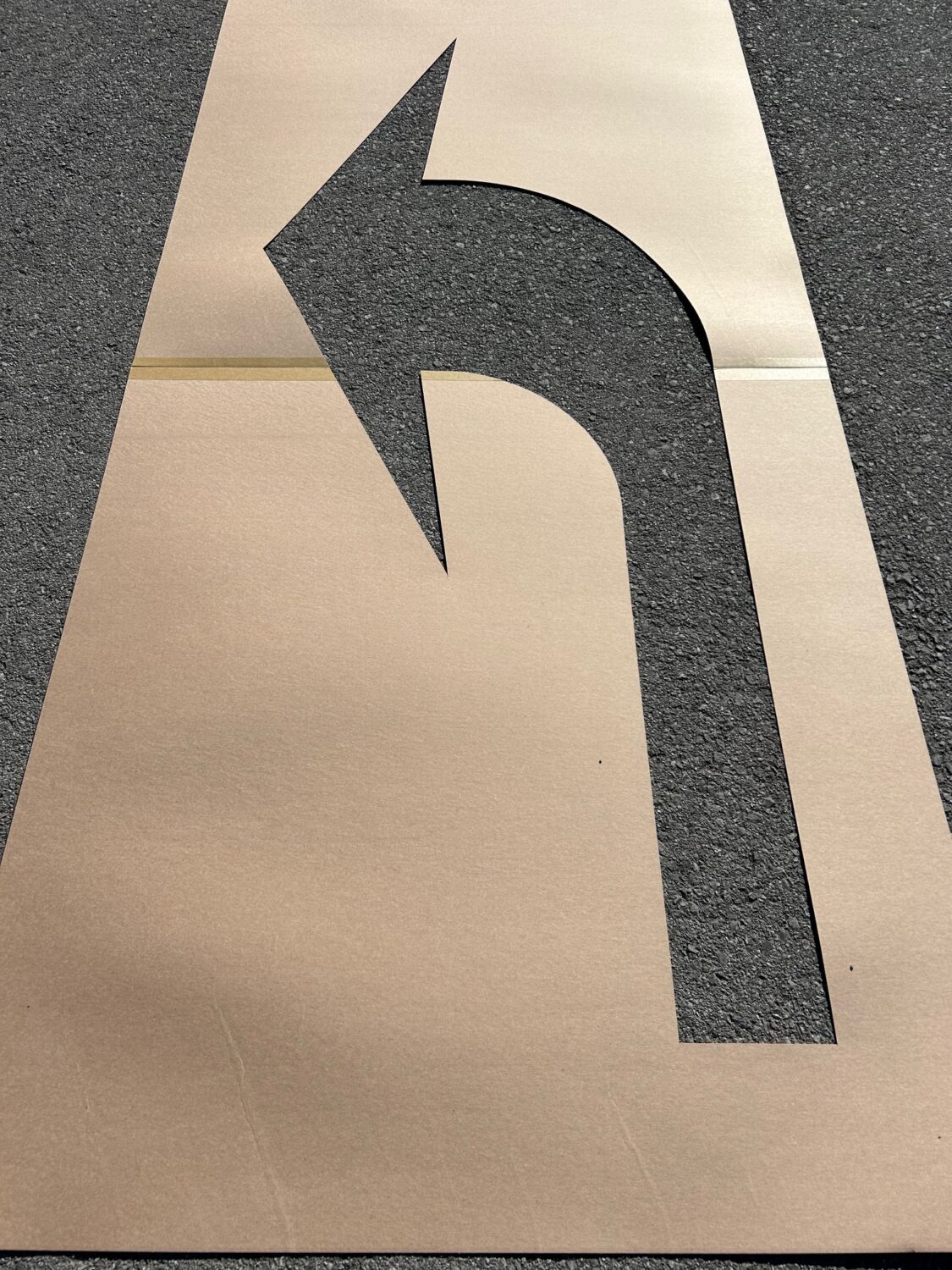

Bike Turn Arrow – BTA08X1
Measurements:
32" x 39"
800 mm x 1000 mm

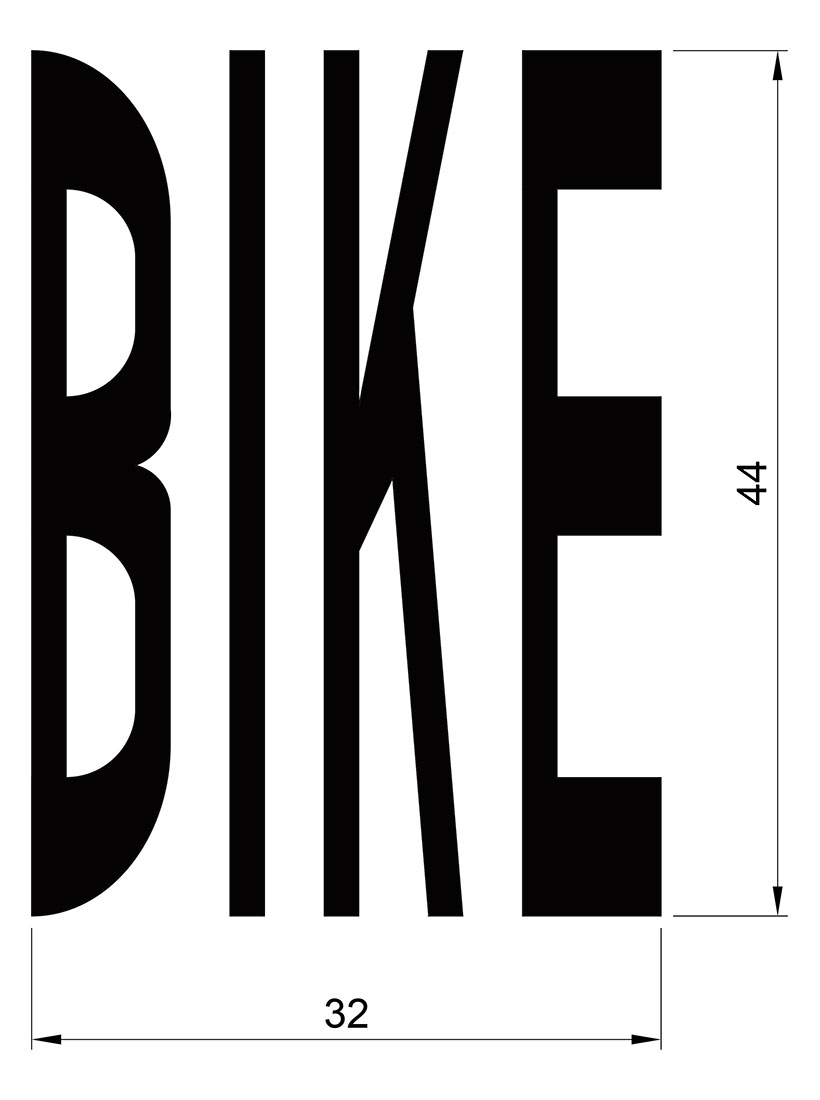

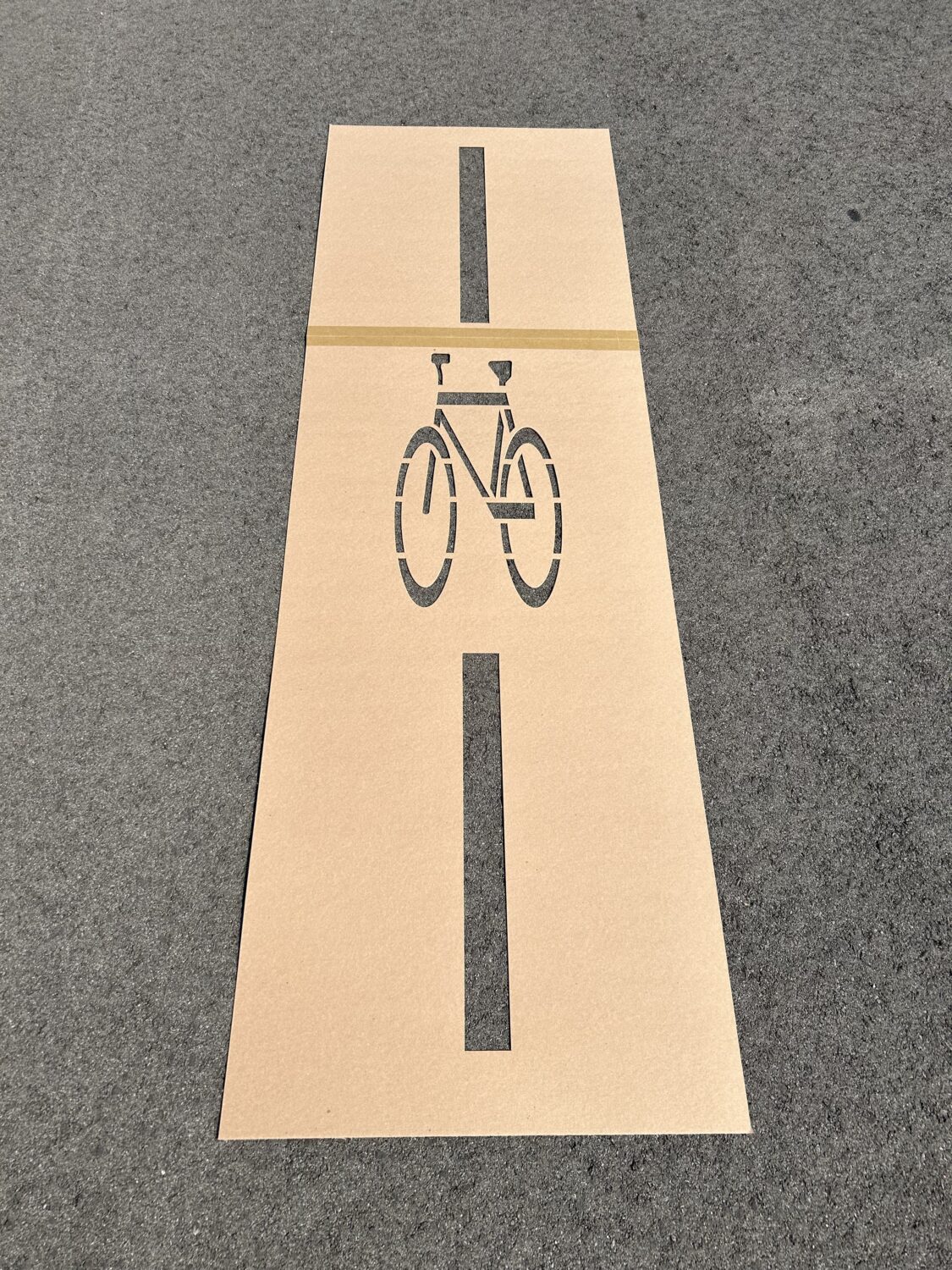

Bike 44×32
Measurements:
44” X 32”
